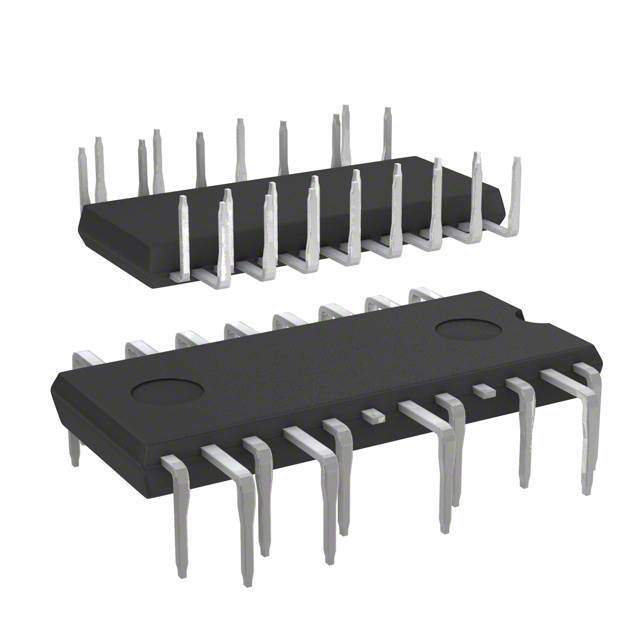

STGIPQ5C60T-HZ Intelligent Power Module by STMicroelectronics

The STGIPQ5C60T-HZ is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative approach to power management and energy-saving technologies. This IPM is part of the SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module, and is specifically designed to offer a compact, high-performance solution for a wide range of motor drive applications.

At the heart of the STGIPQ5C60T-HZ module lies a three-phase inverter with a 600V breakdown voltage and a 5A current rating, making it an ideal choice for applications that demand efficient and reliable power conversion. The module integrates multiple components, including IGBTs (Insulated Gate Bipolar Transistors), freewheeling diodes, and gate drivers, into a single package to simplify design, reduce assembly time, and enhance overall system reliability.

One of the key features of this IPM is its over-current, over-temperature, and under-voltage lockout protections, which safeguard the module and the system it powers against a variety of electrical faults. This ensures a higher level of safety and reliability, which is crucial for applications where consistent performance and uptime are critical.

The STGIPQ5C60T-HZ is also equipped with a built-in temperature sensor, providing real-time thermal monitoring that can be used to optimize system performance and prevent overheating. This feature is particularly useful in extending the lifespan of the module and the equipment it is used in.

Designed with a compact footprint, the STGIPQ5C60T-HZ is suitable for space-constrained applications. Its high integration level allows designers to reduce the number of external components required, leading to a more streamlined PCB layout and reduced system complexity. This IPM is an excellent choice for applications such as home appliances, air conditioners, fans, pumps, and other low-power motor drives.

Overall, the STGIPQ5C60T-HZ from STMicroelectronics represents a robust and efficient solution for designers looking to enhance the performance and reliability of their motor drive systems, while minimizing design challenges and time to market.
