Same model may have multiple batches, images only for reference.

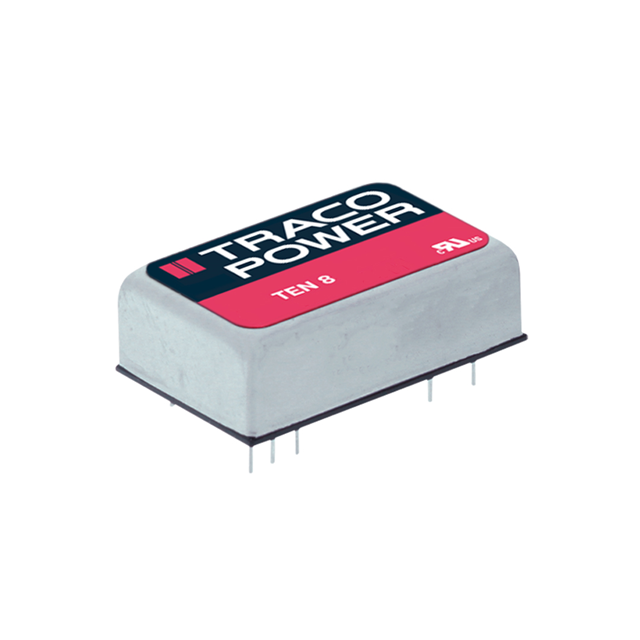

TEN 8-4821 Real Image
Same model may have multiple batches, images only for reference.

TEN 8-4821

Part No TEN 8-4821
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 8W / Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 36V - 75V Input
Datasheet
TEN 8-4821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 8 (8W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 800mA, 800mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TEN8-4821,TEN 8-4821-ND
Standard Package 10
Win Source Part Number 1099086-TEN 8-4821
Ultra Librarian 3D Model Ultra Librarian TEN 8-4821 CAD Model

Description

This electronic component is an isolated module type DC DC converter from the TEN 8 (8W) series manufactured by Traco Power.

  • Series: TEN 8 (8W)
  • Manufacturer: Traco Power
  • Win Source Part Number: 1099086-TEN 8-4821
  • Package: Tube
  • Power Rating: 8W
  • Number of Outputs: 2
  • Maximum Output Current: 800mA for both
  • Voltage Isolation: 1.5 kV
  • Input Voltage Range: From 36V to 75V
  • Output Voltage 1: 5V
  • Output Voltage 2: -5V
  • Efficiency: 85%
  • Mounting: Through hole
  • Temperature Range: From -40°C to 85°C with derating
