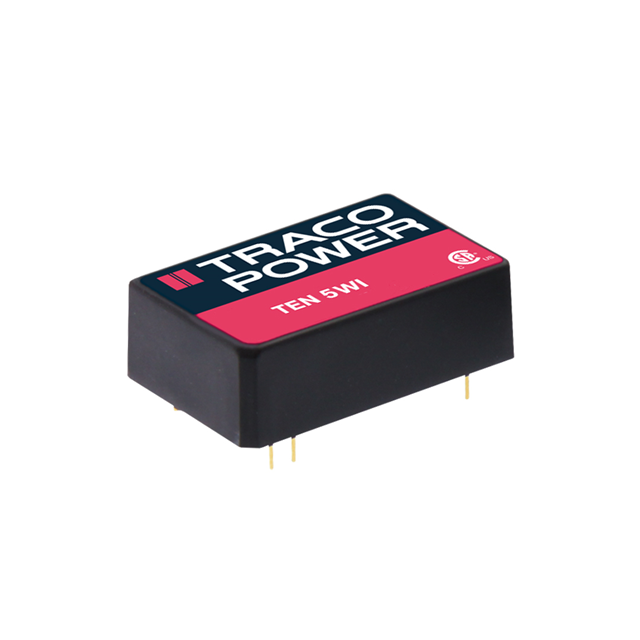

TEN 5-4812WI

Name: TEN 5-4812WI
Brand: Traco Power
SKU: 1335818
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEN 5-4812WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 6W / Isolated Module DC DC Converter 1 Output 12V 500mA 18V - 75V Input
Datasheet	TEN 5-4812WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	500mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	83%
Mounting	Through Hole
Case / Package	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 5
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2564
Standard Package	10
Win Source Part Number	1335818-TEN 5-4812WI
Ultra Librarian 3D Model	Ultra Librarian TEN 5-4812WI CAD Model

Alternative Products

Description

The Traco Power TEN 5-4812WI is a powerful and versatile DC-DC converter designed for use in ITE (Commercial) applications.

Power Output: 6W
Voltage Input: 18V to 75V
Type: Isolated Module
Features: SCP capabilities
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Voltage Isolation: 1.5 kV
Efficiency: 83%
ROHS Status: ROHS3 compliant
Approval: UL approved
