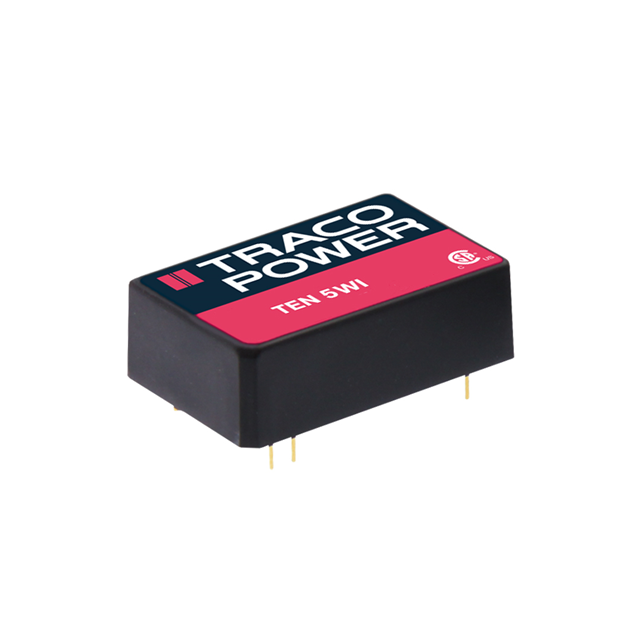

TEN 5-2421WI Real Image
Same model may have multiple batches, images only for reference.

TEN 5-2421WI

Part No TEN 5-2421WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 9V - 36V Input
Datasheet
TEN 5-2421WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 500mA, 500mA
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Through Hole
Case / Package 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2198
Standard Package 10
Win Source Part Number 1335809-TEN 5-2421WI
Ultra Librarian 3D Model Ultra Librarian TEN 5-2421WI CAD Model

Description

The TEN 5-2421WI is a 5W DC/DC converter from Traco Power.

  • Type: Isolated module
  • Number of Outputs: Two
  • Outputs: 5V and -5V
  • Voltage Isolation: 1.5kV
  • Applications: ITE (Commercial)
  • Features: SCP (Short Circuit Protection)
  • Efficiency: 78%
  • Operating Temperature: -40°C to 85°C
  • Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Package: 24-DIP module, 7 leads package
  • ROHS Status: ROHS3 compliant
