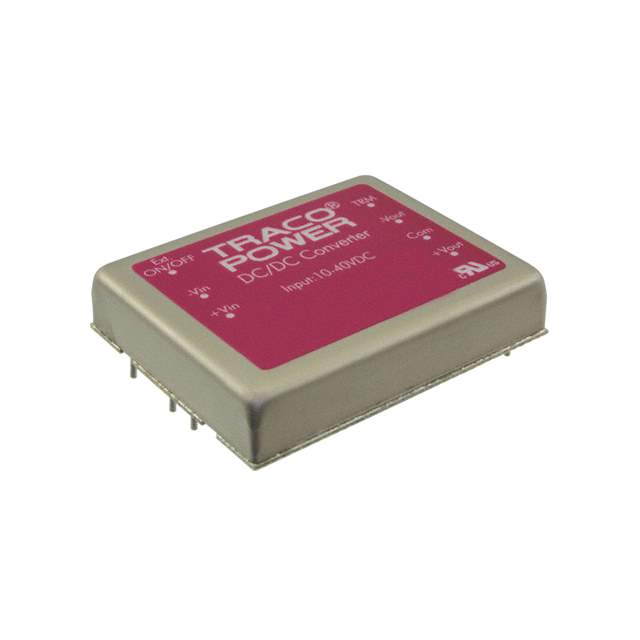

TEN 30-2411WI Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2411WI

Part No TEN 30-2411WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 10V - 40V Input
Datasheet
TEN 30-2411WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10V
Voltage - Input (Max) 40V
Voltage - Output 1 5V
Current - Output (Max) 6A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN30-2411WI,1951-3006,TEN30-2411WI-ND
Standard Package 10
Win Source Part Number 1335717-TEN 30-2411WI
Ultra Librarian 3D Model Ultra Librarian TEN 30-2411WI CAD Model

Description

The Traco Power DC-DC Converter is a highly efficient power supply that can handle up to 30 watts of power.

  • Type: Isolated module
  • Outputs: One
  • Maximum Current Output: 6A
  • Input Voltage Range: Between 10V and 40V
  • Output Voltage: 5V
  • Application: ITE (Commercial)
  • Package: 7-DIP Module, 6 Leads package
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO protection
  • Efficiency: 87%
