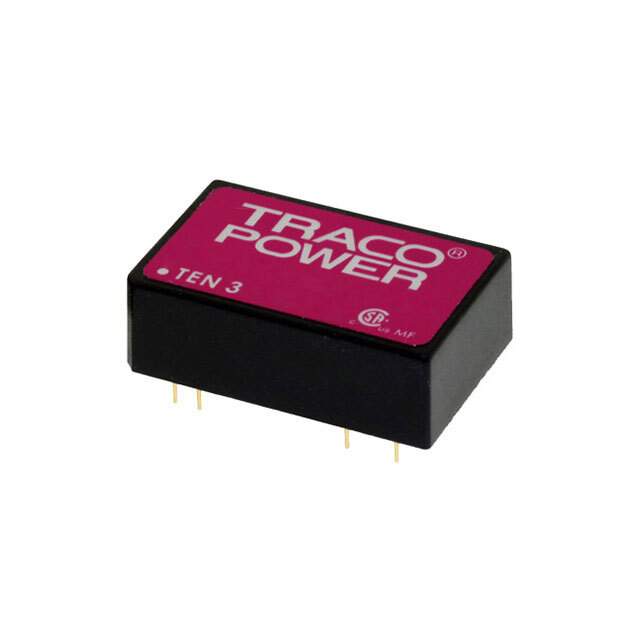

Same model may have multiple batches, images only for reference.

TEN 3-2422WI

Name: TEN 3-2422WI
Brand: Traco Power
SKU: 1335726
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 3-2422WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet	TEN 3-2422WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Approval Agency	CB, cCSAus
Base Product Number	TEN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2164
Standard Package	10
Win Source Part Number	1335726-TEN 3-2422WI
Ultra Librarian 3D Model	Ultra Librarian TEN 3-2422WI CAD Model

Alternative Products

Description

The TEN 3-2422WI is a DC-DC converter module from Traco Power that is designed for ITE (Commercial) applications.

Supply and Demand Status: Balanced
Type: Isolated module
Outputs: Two
Maximum Current Output: 125mA each
Efficiency: 80%
Voltage Isolation: 1.5 kV
Operating Temperature: -40°C to 85°C (With Derating)
Package: 24-DIP module, 8 leads package
Compliance: RoHS3 compliant
