Same model may have multiple batches, images only for reference.

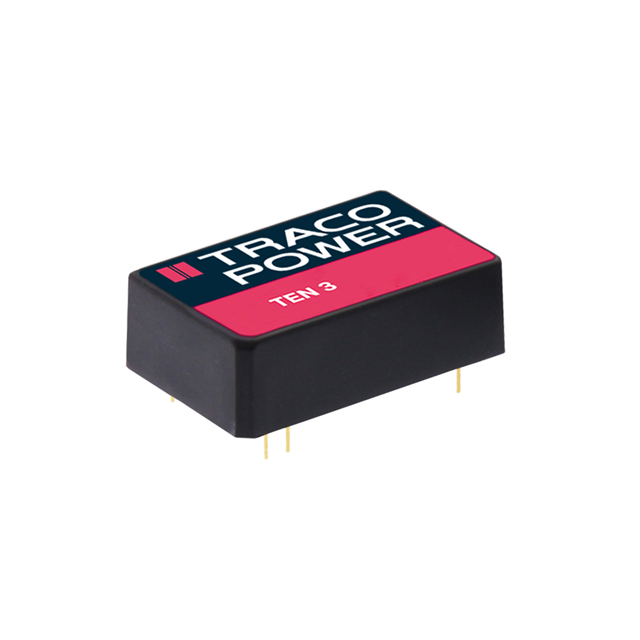

TEN 3-1223 Real Image
Same model may have multiple batches, images only for reference.

TEN 3-1223

Part No TEN 3-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Datasheet
TEN 3-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency CB, cCSAus
Base Product Number TEN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2159
Standard Package 10
Win Source Part Number 1335731-TEN 3-1223
Ultra Librarian 3D Model Ultra Librarian TEN 3-1223 CAD Model

Description

The Traco Power TEN 3-1223 is a 3 W isolated module DC-DC converter with SCP feature.

  • Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Application: ITE (Commercial)
  • Mounting: Through-hole
  • Voltage Isolation: 1.5 kV
  • Efficiency: 80%
  • Outputs: Two
  • Voltage: 15V and -15V
  • Input Voltage: 9V to 18V
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Package: 24-DIP Module, 8 Leads package
  • Compliance: ROHS3 compliant
  • REACH: Unaffected
