Same model may have multiple batches, images only for reference.

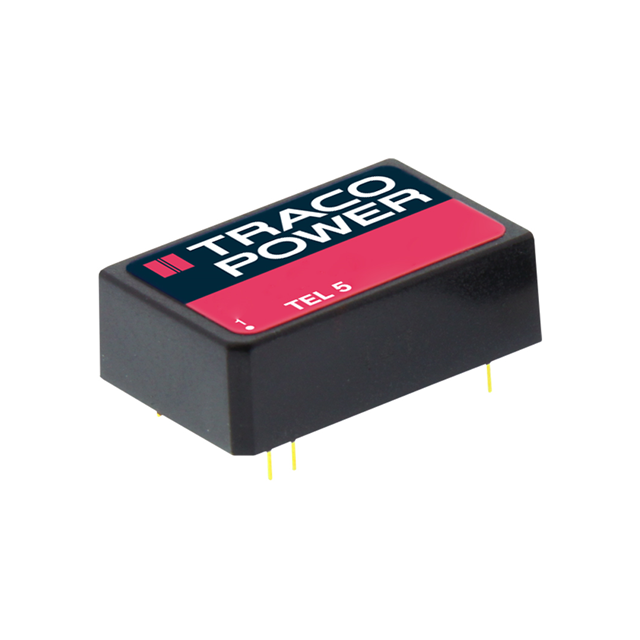

TEL 5-1222 Real Image
Same model may have multiple batches, images only for reference.

TEL 5-1222

Part No TEL 5-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 18V Input
Datasheet
TEL 5-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEL 5 (5W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 23-DIP Module, 7 Leads
Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEL 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2114
Standard Package 10
Win Source Part Number 1099076-TEL 5-1222
Ultra Librarian 3D Model Ultra Librarian TEL 5-1222 CAD Model

Description

The TEL 5-1222 is a 6W isolated module DC-DC converter from Traco Power.

  • Win Source Part Number: 1099076
  • Recommended for: ITE (Commercial) applications
  • Outputs: Two
  • Current Output: 250mA each
  • Input Voltage: 9V to 18V
  • Output Voltage (Output 1): 12V
  • Output Voltage (Output 2): -12V
  • Efficiency: 84%
  • Voltage Isolation: 1.5kV
  • Mounting Type: Through-hole
  • Package/Case: 23-DIP Module, 7 Leads
  • Temperature Range: -40°C to 85°C (With Derating)
