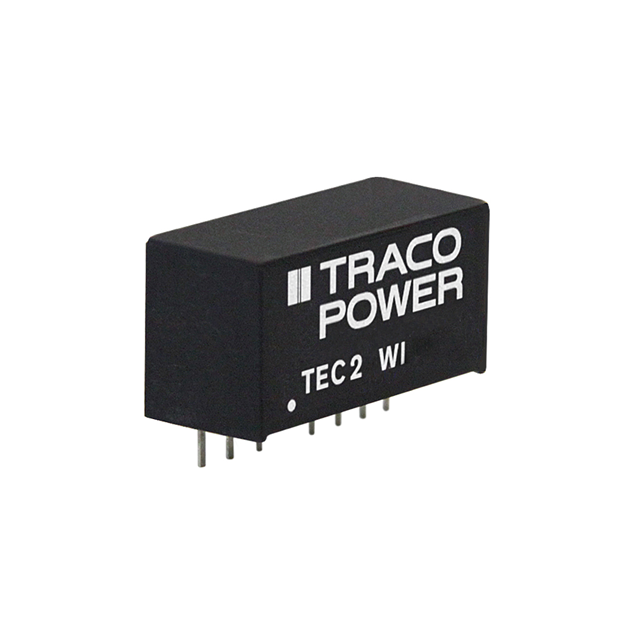

TEC 2-4822WI Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEC 2WI (2W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 93°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TEC 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-1441
Standard Package 10
Win Source Part Number 1050736-TEC 2-4822WI
Ultra Librarian 3D Model Ultra Librarian TEC 2-4822WI CAD Model

Description

The Traco Power 1050736-TEC 2-4822WI is a DC DC converter that belongs to the TEC 2WI (2W) series.

  • Series: TEC 2WI (2W)
  • Converter Type: Isolated Module
  • Application: ITE (Commercial)
  • Power Output: 2W
  • Voltage Isolation: 1.6 kV
  • Number of Outputs: 2
  • Maximum Output Current: 83mA each
  • Input Voltage: 18V to 75V
  • Output Voltage (Output 1): 12V
  • Output Voltage (Output 2): -12V
  • Remote On/Off: Yes
  • Protection: SCP
  • Mounting Type: Through Hole
  • Package: 8-SIP Module, 7 Leads
  • Temperature Range: -40°C to 93°C (with derating)
  • Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Packaging: Tube
  • Standard Package: 10
  • Alternative Parts: TEC 2-4822WI, TEC 2-4822WITEC2-4822WI
