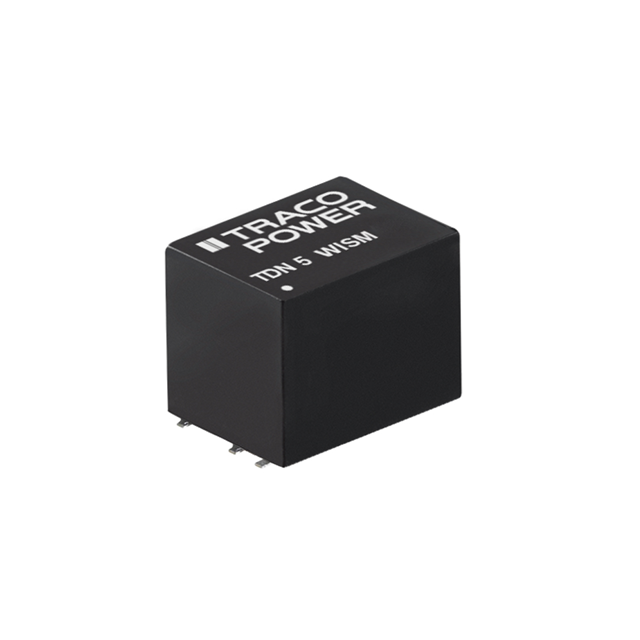

Same model may have multiple batches, images only for reference.

TDN 5-0921WISM

Name: TDN 5-0921WISM
Brand: Traco Power
SKU: 1335484
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDN 5-0921WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 4.5V - 13.2V Input
Datasheet	TDN 5-0921WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	500mA, 500mA
Power (Watts)	5 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	80%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency	UL
Standard Number	60950-1; 62368-1
Base Product Number	TDN 5
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN 5-0921WISM-ND,TDN5-0921WISM
Standard Package	10
Win Source Part Number	1335484-TDN 5-0921WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 5-0921WISM CAD Model

Alternative Products

Description

The TDN 5-0921WISM is a DC-DC converter module manufactured by Traco Power.

Type: isolated module
Features: remote on/off feature and short circuit protection
Size: 0.52" L x 0.36" W x 0.40" H
Mounting Type: surface mountable
Application: commercial ITE applications
Power Output: 5 watts
Number of Outputs: 2
Output Voltages: 5V and -5V
Maximum Output Current: 500mA each
Input Voltage Range: between 4.5V to 13.2V
Efficiency: 80%
Compliance: ROHS3
Approvals: UL
