Same model may have multiple batches, images only for reference.

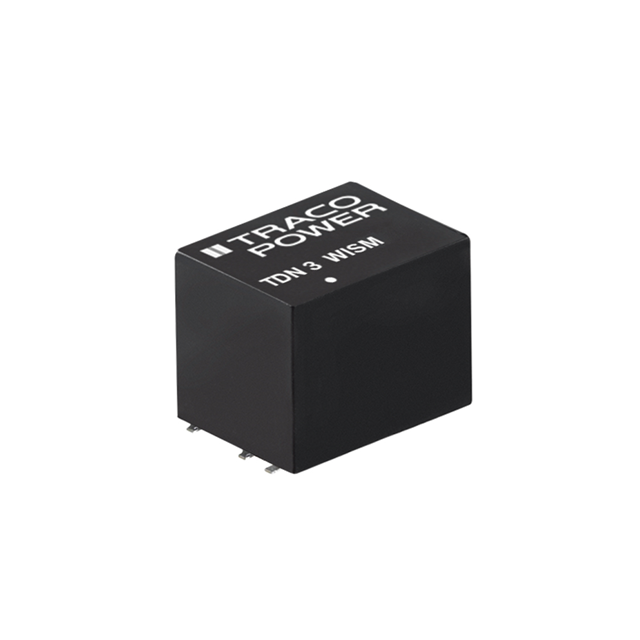

TDN 3-4822WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 3-4822WISM

Part No TDN 3-4822WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 75V Input
Datasheet
TDN 3-4822WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 82%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 3
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 3-4822WISM-ND,TDN3-4822WISM
Standard Package 10
Win Source Part Number 1335468-TDN 3-4822WISM
Ultra Librarian 3D Model Ultra Librarian TDN 3-4822WISM CAD Model

Description

The Traco Power TDN 3-4822WISM is a DC-DC converter module that comes in a 7-SMD package with 6 leads.

  • Type: Isolated
  • Features: Remote on/off and SCP
  • Power Output: 3W
  • Voltage Isolation: 1.6kV
  • Number of Outputs: 2
  • Maximum Output Current: 125mA each
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V and -12V
  • Efficiency: 82%
  • Operating Temperature Range: -40°C to 70°C
  • Application: ITE (Commercial)
  • ROHS3 compliant: Yes
