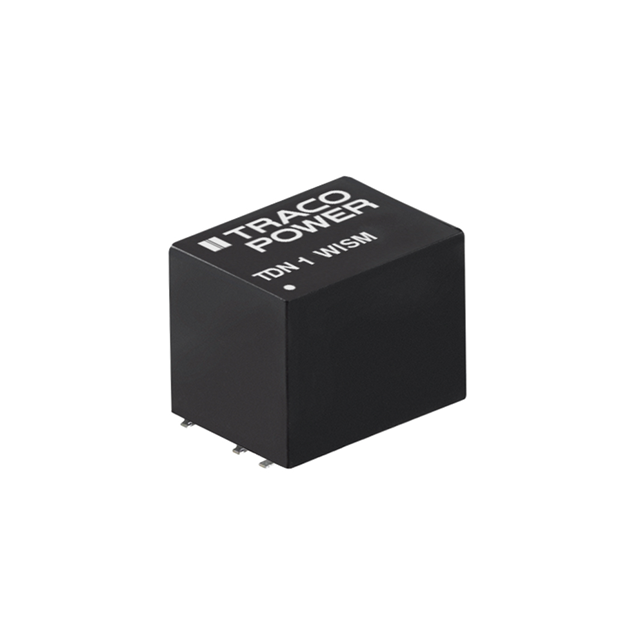

Same model may have multiple batches, images only for reference.

TDN 1-1222WISM

Name: TDN 1-1222WISM
Brand: Traco Power
SKU: 1335408
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 1-1222WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1.1W / Isolated Module DC DC Converter 2 Output 12V -12V 45mA, 45mA 4.5V - 18V Input
Datasheet	TDN 1-1222WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	45mA, 45mA
Power (Watts)	1.1 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	80%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 1
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN 1-1222WISM-ND,TDN1-1222WISM
Standard Package	10
Win Source Part Number	1335408-TDN 1-1222WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 1-1222WISM CAD Model

Alternative Products

Description

The Traco Power isolated module is a DC-DC converter designed for ITE (commercial) applications.

Remote on/off: Yes
SCP: Yes
Size Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Number of Outputs: 2
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Power: 1.1W
Voltage Isolation: 1.6kV
Current Output: 45mA, 45mA
Temperature Range: -40°C to 90°C
Case/Package: 7-SMD module, 6 leads
Mounting Technology: Surface-Mount
ROHS3 Compliant: Yes
ECCN: EAR99
