MPM3606AGQV-Z

Part No MPM3606AGQV-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 4.5-21V
Datasheet
MPM3606AGQV-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 21V
Voltage - Output 1 0.8 ~ 18.48V
Current - Output (Max) 600mA
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount

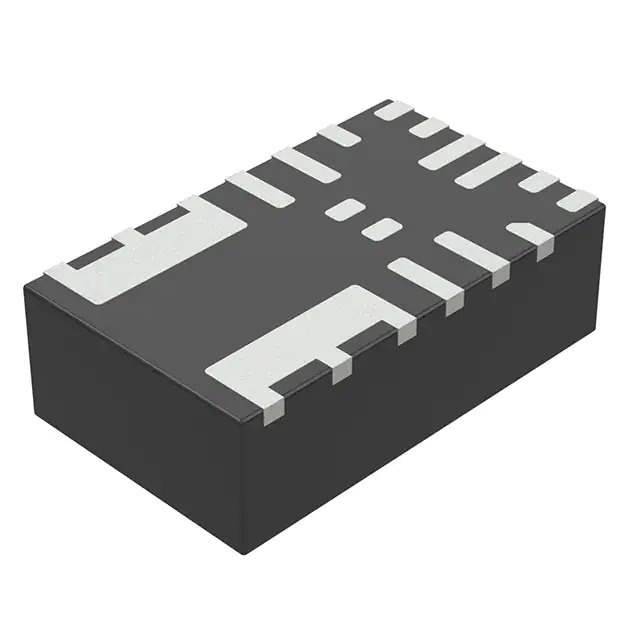

Package / Case 20-PowerLFQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 20-QFN (3x5)
Control Features Enable, Active High
Base Product Number MPM3606
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 643854-MPM3606AGQV-Z
Ultra Librarian 3D Model Ultra Librarian MPM3606AGQV-Z CAD Model

Description

The MPM3606AGQV-Z is a non-isolated PoL module designed for power supplies in various applications.

  • Protection Features: Overcurrent Protection (OCP), Over-Temperature Protection (OTP), Undervoltage Lockout (UVLO)
  • Output Current: 600mA (Max)
  • Voltage Output: 0.8V to 18.48V
  • Input Voltage: 4.5V to 21V
  • Package: 20-PowerLFQFN Module, 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Control: Active High, Enable
  • Application: ITE (Commercial)
