Same model may have multiple batches, images only for reference.

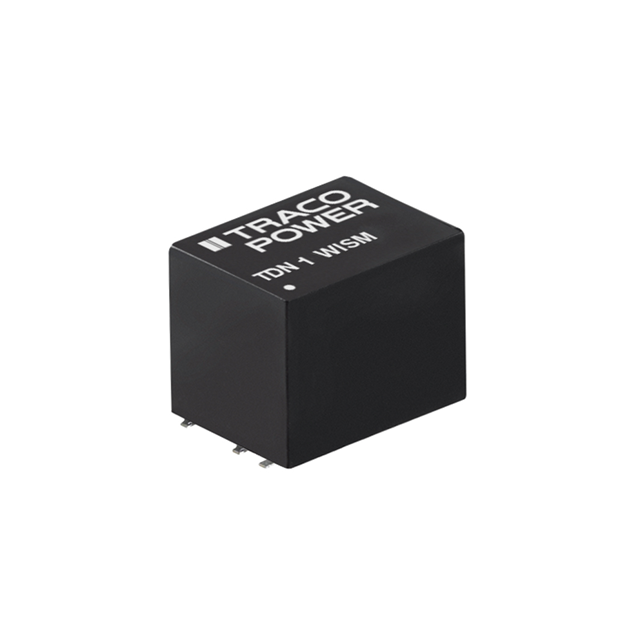

TDN 1-1215WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 1-1215WISM

Part No TDN 1-1215WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1.1W / Isolated Module DC DC Converter 1 Output 24V 45mA 4.5V - 18V Input
Datasheet
TDN 1-1215WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output 1 24V
Current - Output (Max) 45mA
Power (Watts) 1.1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 80%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 1-1215WISM-ND,TDN1-1215WISM
Standard Package 10
Win Source Part Number 1335377-TDN 1-1215WISM
Ultra Librarian 3D Model Ultra Librarian TDN 1-1215WISM CAD Model

Description

The Traco Power TDN 1-1215WISM is a DC-DC converter module that provides a single output of 24V.

  • Maximum Output Current: 45mA
  • Power Rating: 1.1W
  • Efficiency: 80%
  • Features: Remote on/off and SCP functionality
  • Application: ITE (Commercial)
  • Housing: Compact 7-SMD module with 6 leads
  • Voltage Isolation: 1.6kV
  • Operating Temperature Range: -40°C to 90°C
  • RoHS3 Compliant: Yes
  • Mounting: Surface Mount
