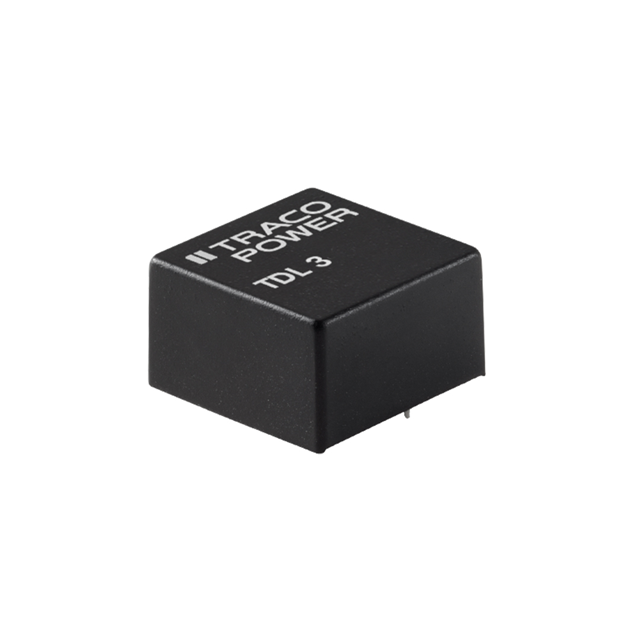

TDL 3-2422 Real Image
Same model may have multiple batches, images only for reference.

TDL 3-2422

Part No TDL 3-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet
TDL 3-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 86%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL 3-2422-ND,2266-TDL 3-2422,TDL3-2422
Standard Package 10
Win Source Part Number 1335396-TDL 3-2422
Ultra Librarian 3D Model Ultra Librarian TDL 3-2422 CAD Model

Description

The Traco Power DC-DC Converter is a highly efficient power supply that can handle up to 3 watts of power.

  • Type: Isolated module
  • Outputs: Two outputs
  • Maximum Current Output: 125mA each
  • Input Voltage Range: Between 18V and 36V
  • Output Voltage for the First Output: 12V
  • Output Voltage for the Second Output: -12V
  • Application: ITE (Commercial)
  • Package: 7-DIP Module, 5 Leads
  • Protection: OCP and SCP protection
  • Efficiency: 86%
