Same model may have multiple batches, images only for reference.

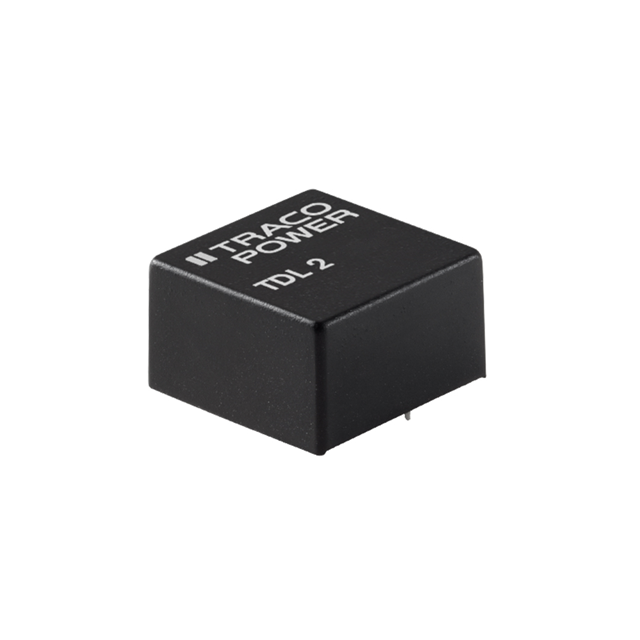

TDL 2-1222 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-1222

Part No TDL 2-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 9V - 18V Input
Datasheet
TDL 2-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TDL 2 (2W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-DIP Module, 5 Leads
Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TDL2-1222,2266-TDL 2-1222,TDL 2-1222-ND
Standard Package 10
Win Source Part Number 1021090-TDL 2-1222
Ultra Librarian 3D Model Ultra Librarian TDL 2-1222 CAD Model

Description

The Traco Power TDL 2-1222 is an isolated DC-DC converter module manufactured by Traco Power.

  • Power Output: 2W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5kV
  • Features: SCP
  • Popularity: Medium
  • Supply and Demand Status: Balanced
