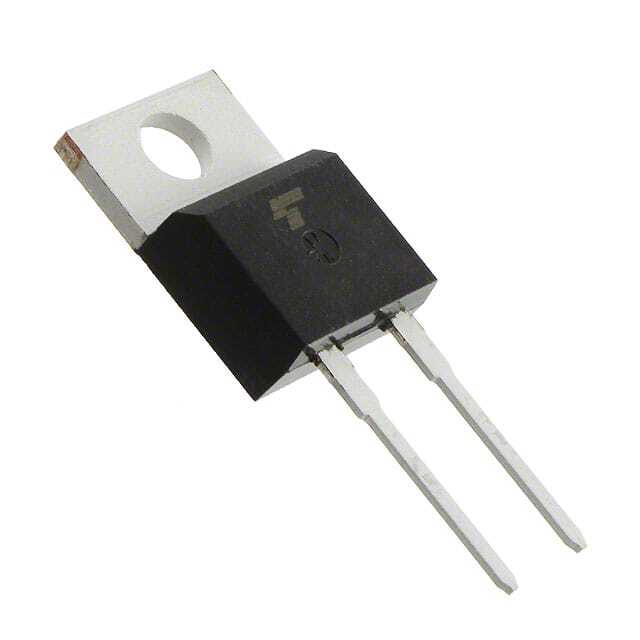

Same model may have multiple batches, images only for reference.

TRS4E65F,S1Q

Name: TRS4E65F,S1Q
Brand: Toshiba Semiconductor and Storage
SKU: 1225139
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TRS4E65F,S1Q
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Diodes, Rectifiers - Single
Description	PB-F DIODE TO-220-2L V=650 IF=4A / Diode Silicon Carbide Schottky 650 V 4A (DC) Through Hole TO-220-2L
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Toshiba Semiconductor and Storage
Package	Tube
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	650 V
Current - Average Rectified (Io)	4A (DC)
Voltage - Forward (Vf) (Max) @ If	1.6 V @ 4 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	20 µA @ 650 V
Capacitance @ Vr, F	16pF @ 650V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220-2L
Operating Temperature - Junction	175°C (Max)
Base Product Number	TRS4E65
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	TRS4E65F,S1Q(S,264-TRS4E65FS1Q
Standard Package	50
Win Source Part Number	1225139-TRS4E65F,S1Q
Ultra Librarian 3D Model	Ultra Librarian TRS4E65F,S1Q CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TRS4E65F,S1Q is a silicon carbide Schottky diode with a voltage of 650 V and a current of 4A (DC).

Voltage: 650 V
Current: 4A (DC)
Voltage Forward (Vf) @ 4A: 1.6 V
Reverse Recovery Time (trr): 0 ns
Current Reverse Leakage @ Vr: 20 µA @ 650 V
Capacitance @ Vr, F: 16pF @ 650V, 1MHz
Operating Temperature - Junction: 175°C (Max)
Mounting Type: Through Hole
Package/Case: TO-220-2
Supplier Device Package: TO-220-2L
ECCN: EAR99
HTSUS: 8541.10.0080
