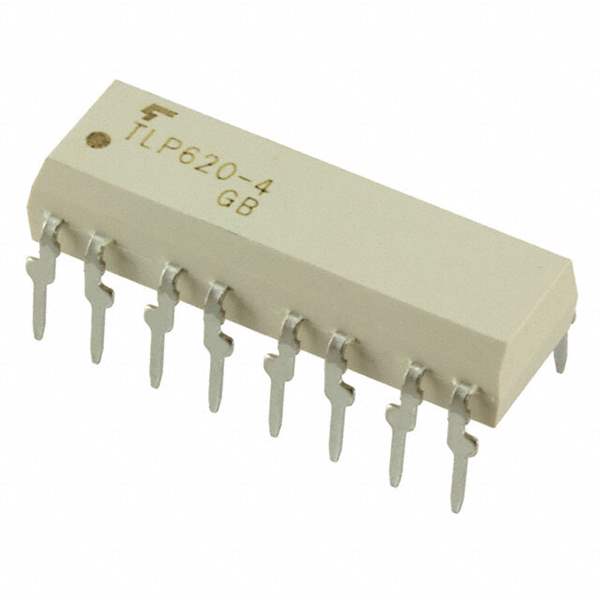

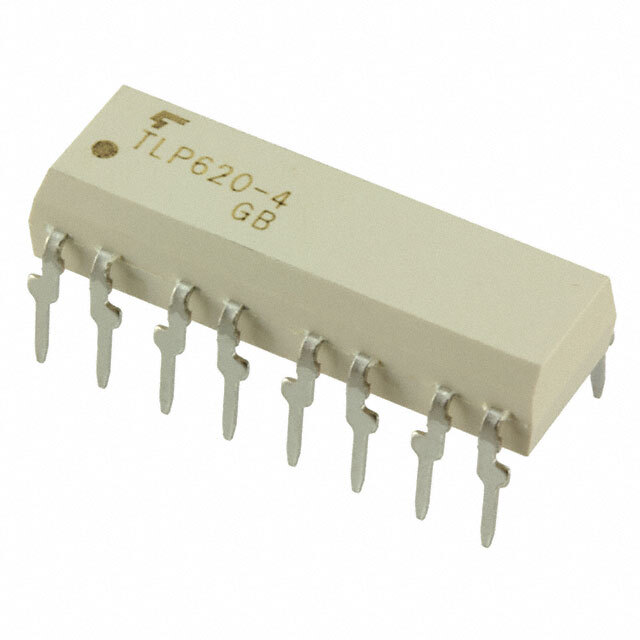

TLP620-4GR Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP620-4GR

Part No TLP620-4GR
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optoisolator Transistor Output 5000Vrms 4 Channel 16-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 3μs, 3μs
Rise / Fall Time (Typ) 2μs, 3μs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 55V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 16-DIP (0.300", 7.62mm)
Manufacturer Device Package 16-DIP
Win Source Part Number 218279-TLP620-4GR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP620-4GR CAD Model

Description

The Toshiba Semiconductor and Storage optoisolator, part number 218279-TLP620-4GR, is a 16-DIP (0.300", 7.62mm) package device designed for use in transistor, photovoltaic output optoisolators.

  • Input Type: AC, DC
  • Output Type: Transistor
  • Channels: 4
  • Current Transfer Ratio (min): 100% @ 5mA
  • Current Transfer Ratio (max): 600% @ 5mA
  • Rise/Fall Time: 2μs/3μs (typ)
  • Turn On/Turn Off Time: 3μs/3μs (typ)
  • Maximum Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 55V
  • Operating Temperature Range: -55°C to 100°C
  • Package: Tube
