Same model may have multiple batches, images only for reference.

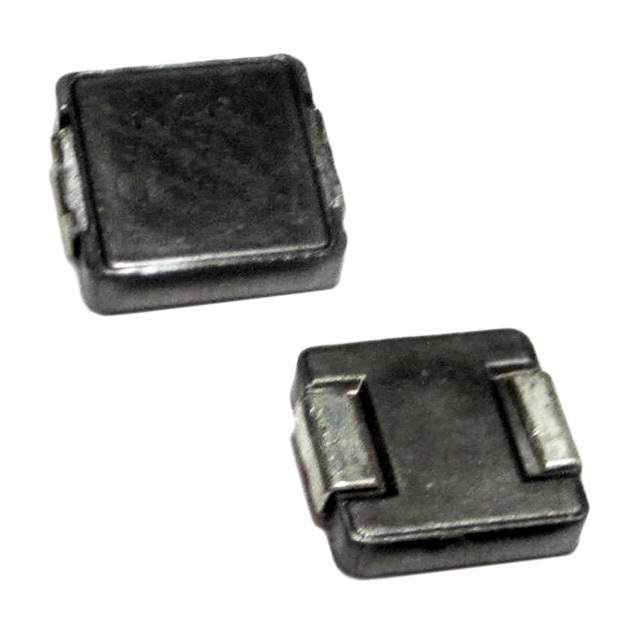

ASPI-7318-100M-T Real Image
Same model may have multiple batches, images only for reference.

ASPI-7318-100M-T

Part No ASPI-7318-100M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 10UH 3A 105 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3 A 105mOhm Max Nonstandard
Datasheet
ASPI-7318-100M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-7318
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 200 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names ASPI-7318-100M-TTR,ASPI7318100MT,-ASPI-7318-100M-TCT,ASPI-7318-100M-TCT,ASPI-7318-100M-T-ND,-ASPI-7318-100M-TTR
Standard Package 1,000
Win Source Part Number 1038386-ASPI-7318-100M-T
Ultra Librarian 3D Model Ultra Librarian ASPI-7318-100M-T CAD Model

Description

The ASPI-7318-100M-T is a drum core, wirewound inductor component from Abracon LLC.

  • Standard Package: 1,000
  • Mounting Style: SMD (SMT)
  • Operating Temperature Range: -55°C to 125°C
  • Tolerance: ±20%
  • DC Resistance: 105mOhm Max
  • Description: It is suitable for electronic devices that require inductor components.
