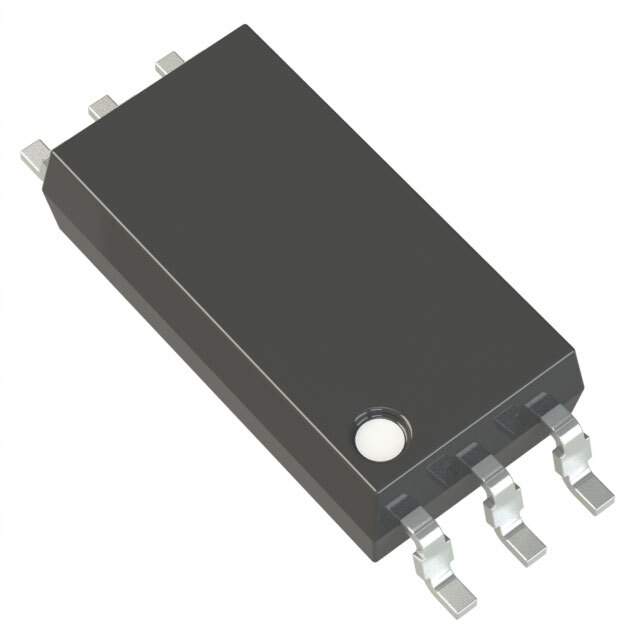

The TLP5772(TPE(T is an IGBT gate driver photocoupler from Toshiba Semiconductor and Storage. It's designed to drive IGBTs (Insulated Gate Bipolar Transistors) and MOSFETs in power electronics applications. This device features a GaAlAs LED that is optically coupled to an integrated circuit, providing a high-output current driver and electrical isolation between the input and output.

Applications


• Motor control inverters: Used in inverters that control the speed and torque of electric motors.

• Power supplies: Applied in switch-mode power supplies for isolated gate drive.

• Uninterruptible Power Supplies (UPS): Employed in UPS systems for driving IGBTs in the inverter stage.

• Induction heating systems: Integrated into induction heaters for controlling power to the heating element.

• Welding equipment: Used for precisely controlling the welding current in welding machines.

Features


• High Output Current: Capable of delivering a high output current to directly drive IGBTs and MOSFETs.

• High Common-Mode Transient Immunity (CMTI): Offers excellent CMTI to prevent false triggering due to noise.

• High Isolation Voltage: Provides a high isolation voltage rating for safe operation in high-voltage applications.

• Under-Voltage Lockout (UVLO): Includes UVLO protection to prevent IGBT/MOSFET damage during low supply voltage conditions.

• Desaturation Detection: Features desaturation detection circuitry to protect the IGBT/MOSFET from overcurrent and short-circuit conditions.

Benefits


• Increased System Efficiency: The high output current and low propagation delay help improve the overall power conversion efficiency of the system.

• Enhanced Safety: The high isolation voltage and UVLO protection enhance safety by preventing damage to the driver and driven components.

• Improved Reliability: Desaturation detection ensures reliable operation and prevents damage to the IGBT/MOSFET during fault conditions.

• Simplified Circuit Design: The integrated design reduces the need for external components and simplifies the overall circuit design.

• Cost-Effective Solution: Direct IGBT driving capability reduces the cost by eliminating the need for extra driver circuitry.

Additional Details

The TLP5772(TPE(T) typically requires a supply voltage between 15V and 30V. The output current capability can reach several amperes. The propagation delay is in the nanosecond range, contributing to fast switching speeds. The operating temperature range usually spans from -40°C to +100°C, making it suitable for a wide range of industrial environments. Refer to the datasheet for precise specifications on maximum output current, isolation voltage, and other critical parameters. This device is typically RoHS compliant, adhering to environmental regulations.
