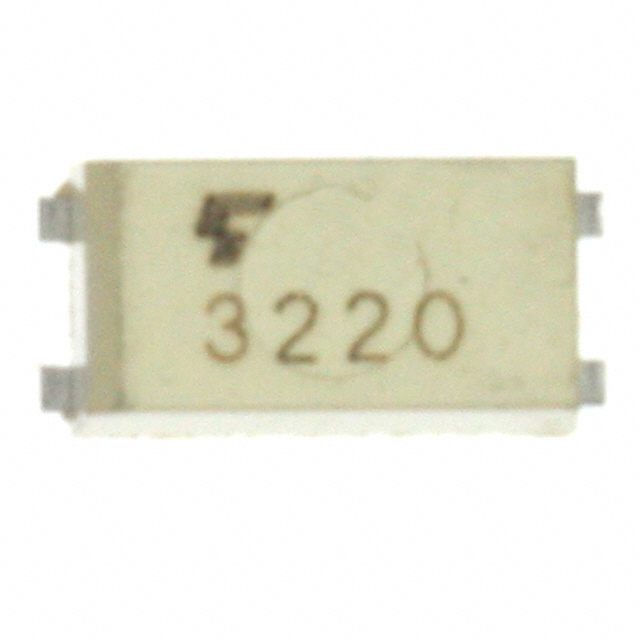

TLP3220(TP15,F)

Name: TLP3220(TP15,F)
Brand: Toshiba Semiconductor and Storage
SKU: 370382
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	TLP3220(TP15,F)
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Solid State Relays
Description	Solid State Relay 50mA 1.3V DC-IN 0.08A 100V 4-Pin SSOP T/R / PHOTORELAY MOSFET OUT 5MA 4-SSOP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Reel - TR
Status	Active
Circuit	SPST-NO (1 Form A)
Output Type	AC, DC
Max On Resistance	14 Ohm
Load Current	80mA
Voltage - Input	1.15VDC
Voltage - Load	0 to 100 V
Mounting	SMD (SMT)
Termination Style	SMD (SMT) Tab
Case / Package	4-SSOP
Relay Type	Relay
Win Source Part Number	130069-TLP3220(TP15,F)
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	TLP3220(TP15,F)
Introduction Date	January 04, 2003
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian TLP3220(TP15,F) CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TLP3220(TP15,F) is a relay type component that has a load current of 80mA and a voltage load of 0 to 100V.

Load Current: 80mA
Voltage Load: 0 to 100V
Circuit: SPST-NO (1 Form A)
Input Voltage: 1.15VDC
Termination Style: SMD (SMT) Tab
Package: 4-SSOP
On Resistance: 14 Ohm (Maximum)
