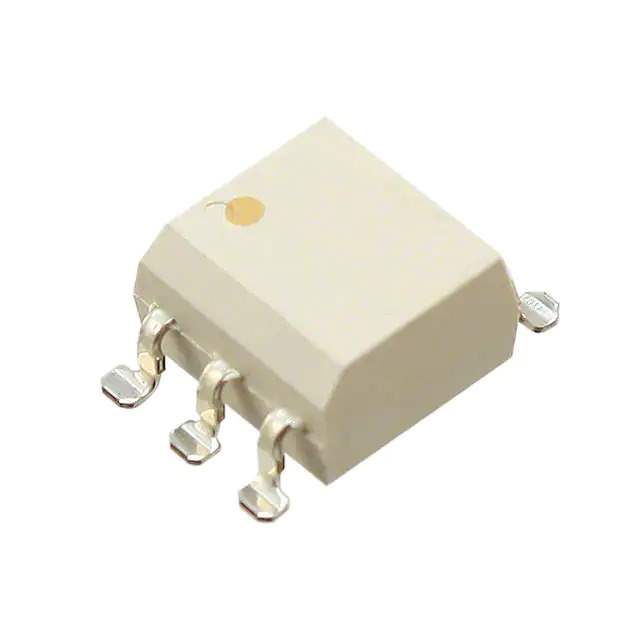

TLP3023SF Real Image
Same model may have multiple batches, images only for reference.

TLP3023SF

Part No TLP3023SF
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L / Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 400 V
Static dV/dt (Min) 200V/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 600µA (Typ)
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package 6-DIP (Cut), 5 Lead
Approval Agency BSI, SEMKO, UR
Base Product Number TLP3023
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 844205-TLP3023SF
Ultra Librarian 3D Model Ultra Librarian TLP3023SF CAD Model

Description

The TLP3023SF is an optoisolator from Toshiba Semiconductor and Storage.

  • Manufacturer: Toshiba Semiconductor and Storage
  • Product Name: TLP3023SF
  • Application: Triac, SCR Output
  • Package: 6-DIP
  • Leads: 5
  • Output Type: Triac
  • Forward Current (Max): 50 mA
  • Forward Voltage (Typical): 1.15V
  • Off-State Voltage: 400V
  • On-State Current (Max): 100 mA
  • Current Hold: 600μA
  • Voltage Isolation: 5000Vrms
  • Static dV/dt: 200V/μs
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 100°C
