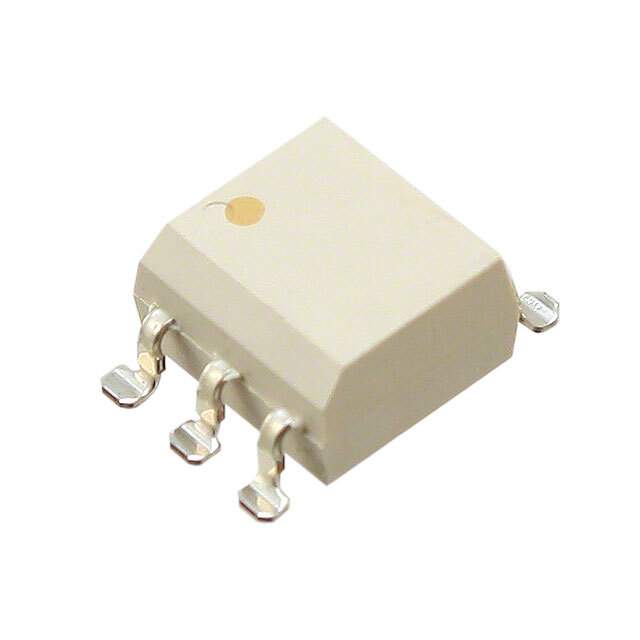

TLP3023(S) Real Image
Same model may have multiple batches, images only for reference.

TLP3023(S)

Part No TLP3023(S)
Manufacturer Toshiba Semiconductor and Storage
Catalog OEM Parts (T - Z)
Description Optocoupler Triac AC-OUT 1-CH 400VDRM 5-Pin PDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PDIP
Forward Current 50 mA
Forward Voltage 1.3 V
Hold Current 600 µA
Input Current 20 mA
Isolation Voltage 5 kV
Lead Free Contains Lead
Max Input Voltage 1.3 V
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Nominal Input Voltage 1.15 V
Number of Channels 1
Number of Circuits 1
Number of Elements 1
Number of Pins 5
Output Current 100 mA
Output Current per Channel 100 mA
Output Voltage 400 V
Power Dissipation 330 mW
Radiation Hardening No
REACH SVHC Unknown
Reverse Breakdown Voltage 5 V
RMS Current (Irms) 100 mA
RoHS Compliant
Win Source Part Number 1099943-TLP3023(S)
Categories OEM Parts(T-Z)
Manufacturer Toshiba Semiconductor and Storage
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian TLP3023(S) CAD Model

Description

The Toshiba Semiconductor and Storage TLP3023(S) is a single-channel optoisolator that has a reverse breakdown voltage of 5V and an isolation voltage of 5kV.

  • Package: PDIP
  • Maximum Operating Temperature: 85 °C
  • Lead Content: Contains lead
  • Radiation Hardened: No
  • RMS Current: 100mA
