Same model may have multiple batches, images only for reference.

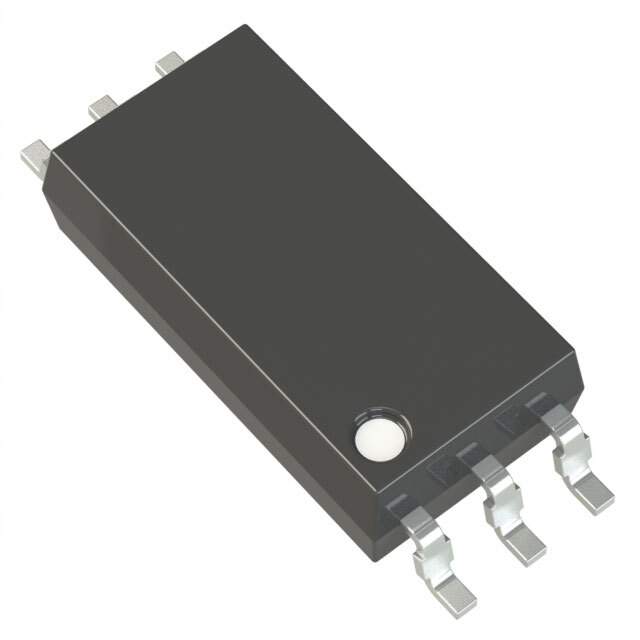

TLP2766A(E Real Image
Same model may have multiple batches, images only for reference.

TLP2766A(E

Part No TLP2766A(E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISOLATOR SO6  /  Logic Output Optoisolator 20MBd Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Toshiba Semiconductor and Storage
Package Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10 mA
Data Rate 20MBd
Propagation Delay tpLH / tpHL (Max) 55ns, 55ns
Rise / Fall Time (Typ) 5ns, 4ns
Voltage - Forward (Vf) (Typ) 1.8V (Max)
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Base Product Number TLP2766
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names 264-TLP2766A(E
Standard Package 125
Win Source Part Number 1099899-TLP2766A(E
Ultra Librarian 3D Model Ultra Librarian TLP2766A(E CAD Model

Description

The Toshiba Semiconductor and Storage TLP2766A(E) is a logic output optoisolator that is designed for use in DC input applications.

  • Data Rate: 20MBd
  • Common Mode Transient Immunity: 20kV/μs
  • Output Type: Push-pull, totem pole
  • Maximum Forward Voltage Drop: 1.8V
  • Propagation Delay: 55ns
  • Package: 6-SOIC
  • Temperature Range: -40°C to 125°C
