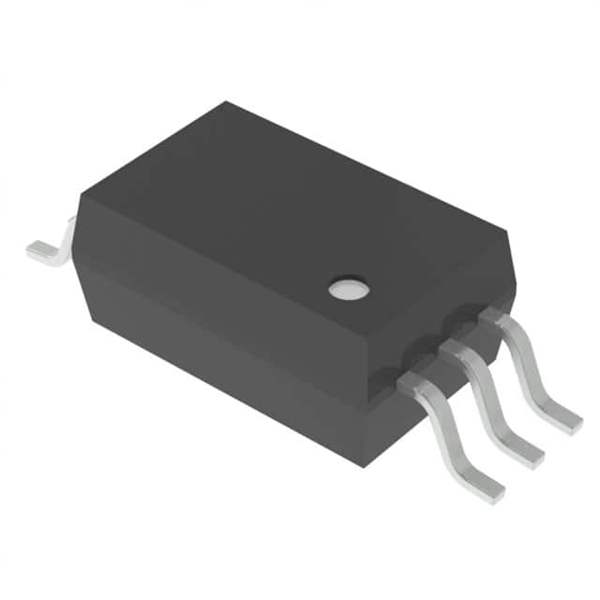

TLP2748(TP,E

Part No TLP2748(TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description High Speed Optocouplers Photocoupler
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 15 Weeks
Features Logic Output Optoisolator - Push-Pull, Totem Pole 5000Vrms 1 Channel 30kV/µs CMTI 6-SO
Manufacturer Toshiba Semiconductor and Storage
Package Reel - TR
Operating Temperature Range -40°C ~ 110°C
Mounting Surface Mount
Package 6-SOIC (0.295", 7.50mm Width)
Case / Package 6-SO
Family Name TLP2748
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.40.8000
Other Part Number TLP2748(TPETR, TLP2748(TPECT, TLP2748(TPEDKR, TLP2748(TP,E(T
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 843910-TLP2748(TP,E
Ultra Librarian 3D Model Ultra Librarian TLP2748(TP,E CAD Model

Description

The Toshiba Semiconductor and Storage TLP2748(TP,E is a medium-popularity logic output optoisolator that has a limited supply and demand status.

  • Output Configuration: Push-Pull, Totem Pole
  • CMTI: 30kV/μs
  • Temperature Range: -40°C to 110°C
  • Package: 6-SOIC
