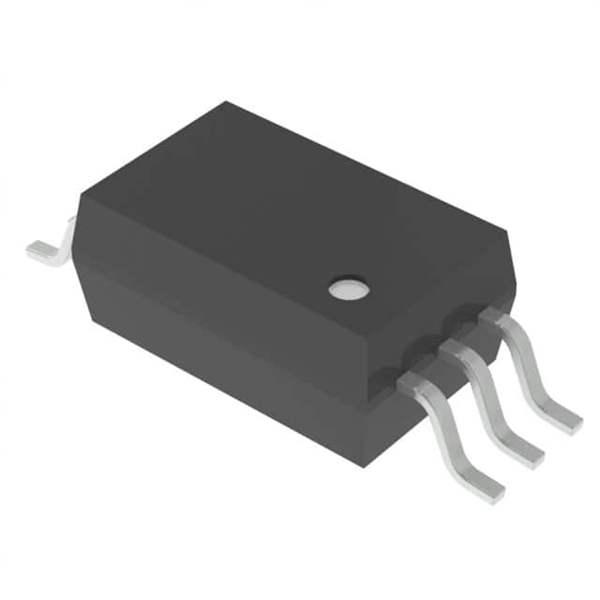

TLP2710(TP4,E

Name: TLP2710(TP4,E
Brand: Toshiba Semiconductor and Storage
SKU: 1099894
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLP2710(TP4,E
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Optoisolators - Logic Output
Description	OPTOCOUPLER HI SPEED LOGIC OUTPU / Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 5000Vrms 1 Channel 25kV/µs CMTI 6-SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Logic Output
Mfr	Toshiba Semiconductor and Storage
Package	Tape & Reel
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	5MBd
Propagation Delay tpLH / tpHL (Max)	250ns, 250ns
Rise / Fall Time (Typ)	11ns, 13ns
Voltage - Forward (Vf) (Typ)	1.9V (Max)
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	2.7V ~ 5.5V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
Base Product Number	TLP2710
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	TLP2710(TP4ETR,TLP2710(TP4,E(O,TLP2710(TP4ECT,TLP2710(TP4EDKR
Standard Package	1,500
Win Source Part Number	1099894-TLP2710(TP4,E
Ultra Librarian 3D Model	Ultra Librarian TLP2710(TP4,E CAD Model

Alternative Products

Description

The TLP2710(TP4,E is an optoisolator with Push-Pull, Totem Pole output type.

Data Rate: 5MBd
Input Type: DC
Current - DC Forward (If) (Max): 8mA
Voltage - Forward (Vf) (Typ): 1.9V (Max)
Rise / Fall Time (Typ): 11ns, 13ns
Current - Output / Channel: 10 mA
Voltage - Isolation: 5000Vrms
Common Mode Transient Immunity (Min): 25kV/μs
Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
Voltage - Supply: 2.7V ~ 5.5V
Temperature Range - Operating: -40°C ~ 125°C
Package: 6-SOIC (0.295", 7.50mm Width)
