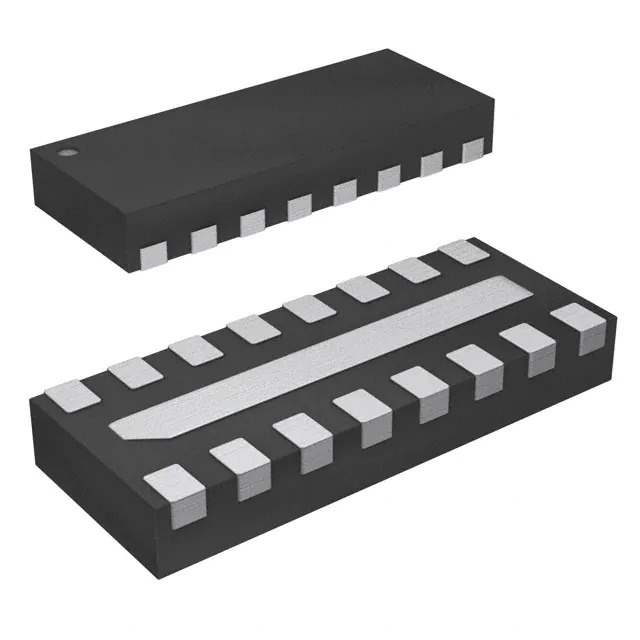

ECLAMP2410PQTCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2410PQTCT

Part No ECLAMP2410PQTCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 45 OHM/15PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Semtech Corporation
Series EMIClamp®
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Resistance - Channel (Ohms) 45
Values R = 45Ohms, C = 15pF
ESD Protection Yes
Temperature Range - Operating -40°C ~ 125°C
Applications Automotive
Mounting Type Surface Mount
Package / Case 16-UFDFN Exposed Pad
Size / Dimension 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height 0.026" (0.65mm)
Base Product Number ECLAMP2410
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 845548-ECLAMP2410PQTCT
Ultra Librarian 3D Model Ultra Librarian ECLAMP2410PQTCT CAD Model

Description

The ECLAMP2410PQTCT is an EMI/RFI filter designed for automotive applications. Manufactured by Semtech Corporation, this filter belongs to the EMIClamp® series, known for its effective noise suppression capabilities.

  • Package: 16-UFDFN exposed pad
  • Mounting: surface mount
  • Filter Type: low-pass
  • Size: 0.157" L x 0.063" W (4.00mm x 1.60mm)
  • Channels: 6
  • Technology: RC (Pi)
  • Product Status: active
