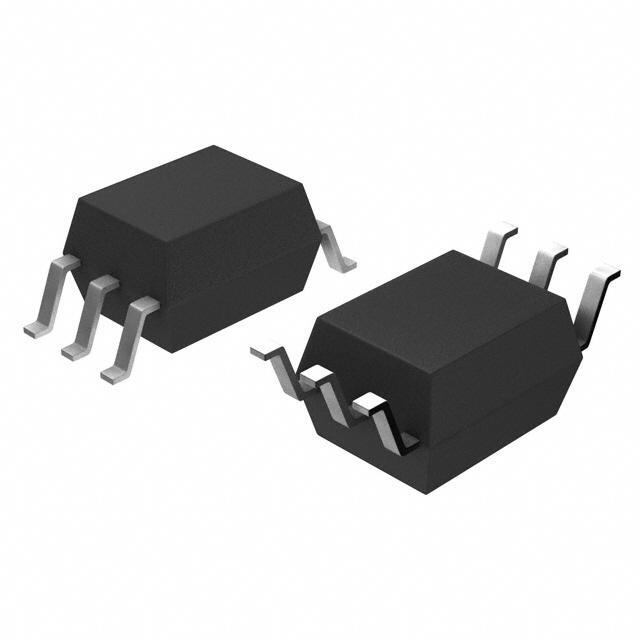

TLP2703(TP,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP2703(TP,E

Part No TLP2703(TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV DARLINGTON SO6L
Datasheet
TLP2703(TP,E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 900% @ 500μA
Maximum DC Current Transfer Ratio 8000% @ 500μA
Switching Turn-On and Turn-Off Time 330ns, 2.5μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 18V
Channel Output Current 80mA
Forward Voltage 1.47V
Continuous forward current- Max 20mA
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SO
Win Source Part Number 1108893-TLP2703(TP,E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP2703(TP,E CAD Model

Description

The TLP2703(TP,E) is an electronic component manufactured by Toshiba Semiconductor and Storage.

  • Supply and Demand Status: Balanced
  • Component Type: Optocoupler
  • Isolation Voltage: 5000Vrms
