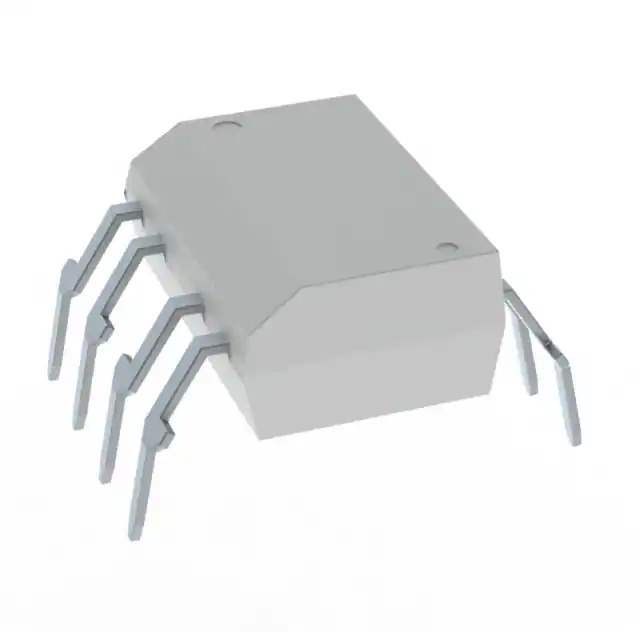

TLP2662(F) Real Image
Same model may have multiple batches, images only for reference.

TLP2662(F)

Part No TLP2662(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV 2CH OPN COL 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Tube
Product Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 25 mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 12ns, 3ns
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Base Product Number TLP2662
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 846320-TLP2662(F)
Ultra Librarian 3D Model Ultra Librarian TLP2662(F) CAD Model

Description

The TLP2662(F) is a logic output optoisolator with an open collector output type.

  • Category: Isolators - Optoisolators - Logic Output Optoisolators
  • Manufacturer: Toshiba Semiconductor and Storage
  • Package: Tube
  • Standard Package Quantity: 50 pcs
  • Data Rate: 10MBd
  • Voltage - Isolation: 5000Vrms
  • Current - Output / Channel: 25 mA
  • Common Mode Transient Immunity (Min): 20kV/μs
  • Voltage - Supply: 2.7V to 5.5V
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS Code: 8541.49.8000
