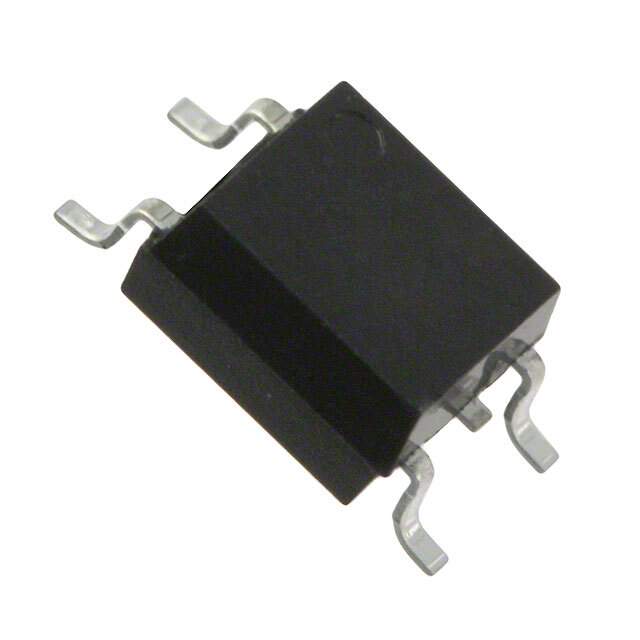

The TLP166J is a Photocoupler from Toshiba Semiconductor and Storage. It features a gallium arsenide infrared emitting diode optically coupled to a phototransistor. It is designed for applications requiring electrical isolation between input and output circuits.

Applications:

• Programmable Logic Controllers (PLCs): Used for input/output isolation in PLCs.
• Inverter Circuits: Provides isolation in inverter circuits to protect control circuitry.
• AC/DC Power Supplies: Offers isolation between the AC input and DC output stages.
• Industrial Control Systems: Used for isolating sensitive control signals from noisy environments.
• Telecommunication Equipment: Provides isolation in telecom interfaces.

Features:

• High Isolation Voltage: Offers high electrical isolation between input and output (typically 3750 Vrms or higher).
• Current Transfer Ratio (CTR): Specified CTR allows for predictable signal transfer characteristics.
• Low Input Current: Requires low input current for operation.
• Compact Package: Available in a small outline package for space-saving designs.
• RoHS Compliant: Meets RoHS environmental standards.

Benefits:

• Electrical Isolation: Prevents ground loops and protects sensitive circuitry from high voltages.
• Signal Integrity: Maintains signal integrity by isolating noise and interference.
• Design Flexibility: Wide operating temperature range allows for use in diverse environments.
• Compact Size: Saves board space in densely populated designs.
• Reliable Performance: Provides stable and consistent performance over its operating life.

Relevant Details:

The TLP166J comes in a DIP-4 package and is crucial for applications that require safety isolation. The collector-emitter voltage is typically around 80V, and the isolation voltage is specified to withstand high transient voltages. The current transfer ratio (CTR) varies depending on the specific part number (e.g., TLP166J(TP,E)), which should be considered when selecting the device. It is important to refer to the datasheet for detailed specifications such as rise and fall times, switching speeds, and temperature characteristics. Toshiba's photocouplers are known for their reliability and adherence to safety standards, and they are widely used in industrial and commercial applications where isolation is critical. Proper layout and soldering techniques are important to ensure reliable operation. The datasheet provides recommendations for soldering profiles and handling precautions.
