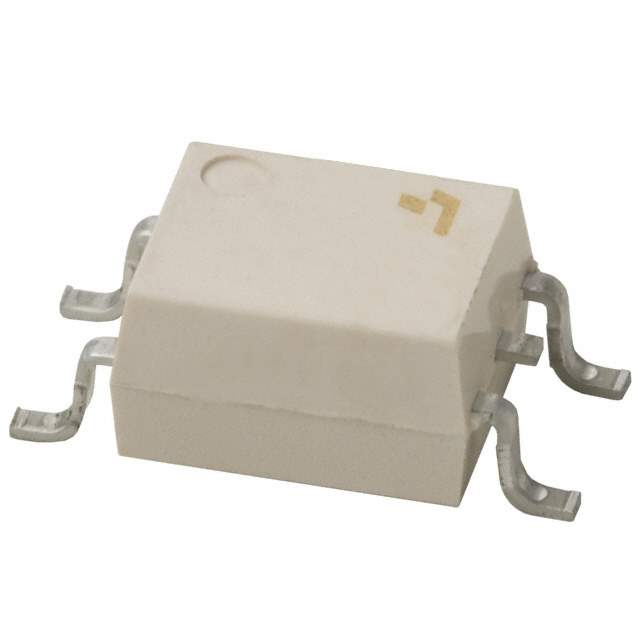

The TLP160JF is a solid-state relay (SSR) in a small outline package, manufactured by Toshiba Semiconductor and Storage. It consists of an infrared LED optically coupled to a MOSFET, providing a robust and reliable switching solution with high isolation.

Applications


• Security Equipment: Used in security systems for signal isolation and control.

• Factory Automation: Integrated into factory automation systems for switching sensors, actuators and other devices.

• Office Automation Equipment: Commonly found in office equipment such as printers and copiers.

• Measuring Instruments: Used in measuring instruments for isolating sensitive measurement circuits.

• Industrial Control: Employed in industrial control systems for switching and isolation of various signals.

• Amusement Machines: Control component in machines with diverse electro-mechanical functions.

Features


• High Isolation Voltage: Offers a high isolation voltage between the input and output (typically 3750 Vrms), providing excellent protection against voltage transients.

• Low On-Resistance: Features a low on-resistance, minimizing power dissipation.

• Small Outline Package: Available in a compact package, saving valuable board space.

• Low Input Control Current: Requires a low input control current, making it compatible with a wide range of control circuits.

• Fast Switching Speed: Provides fast switching speeds, enabling efficient operation.

• RoHS Compliant: Designed and manufactured to be compliant with Restriction of Hazardous Substances (RoHS) directive.

Benefits


• Enhanced Safety: High isolation voltage ensures safety by preventing dangerous voltage levels from reaching the control circuitry.

• Space Saving: The small package size allows for high-density board designs, reducing overall system size.

• Reduced Power Consumption: Low on-resistance minimizes power loss in the switch, leading to energy savings.

• Direct Relay Replacement: It can directly replace electromechanical relays, improving reliability and extending product life.

• Improved Reliability: Solid-state design eliminates mechanical wear and tear, resulting in higher reliability and longer lifespan.

• Simplified Design: Easy integration into existing circuits due to its standard pinout and control requirements.

Additional Details

The TLP160JF operates over a standard industrial temperature range. The precise specifications such as load voltage, load current and isolation voltage must be verified against the product datasheet. It is often surface mounted.
