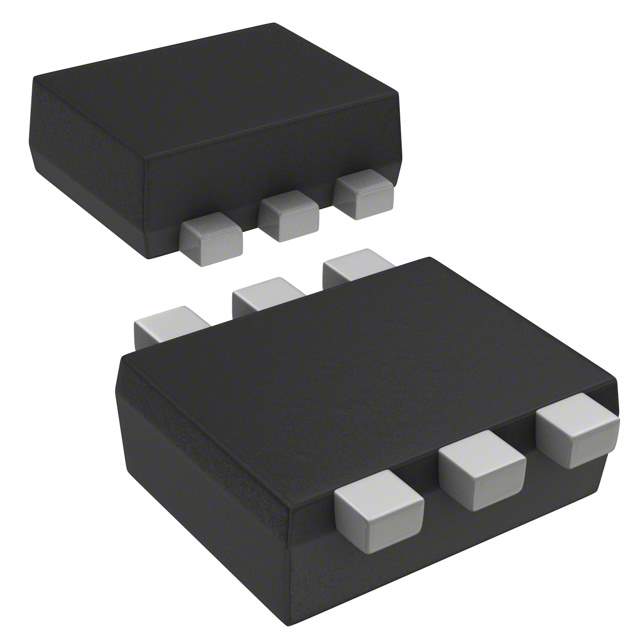

TC7PG04AFE Real Image
Same model may have multiple batches, images only for reference.

TC7PG04AFE

Part No TC7PG04AFE
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Gates and Inverters
Description IC INVERTER DUAL 1INPUT ES6
Datasheet
TC7PG04AFE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 0.9 V to 3.6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 8mA, 8mA
Logic Level - Low 0.7 V to 0.8 V
Logic Level - High 1.7 V to 2 V
Max Propagation Delay @ V, Max CL 4.8ns @ 3.3V, 30pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package ES6 (1.6x1.6)
Dimension SOT-563, SOT-666
Win Source Part Number 056555-TC7PG04AFE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TC7PG04AFE CAD Model

Description

The Toshiba Semiconductor and Storage TC7PG04AFE is a logic inverter with 2 circuits.

  • Usage: designed for use in integrated circuits
  • Popularity: Medium
  • Mounting: SMD (SMT)
  • Maximum Propagation Delay: 4.8ns @ 3.3V, 30pF
  • Current Quiescent: 1μA
  • Logic Level: 0.7 V to 2 V for low and high, respectively
  • Status: Obsolete(EOL)
  • Supply and Demand Status: Limited
