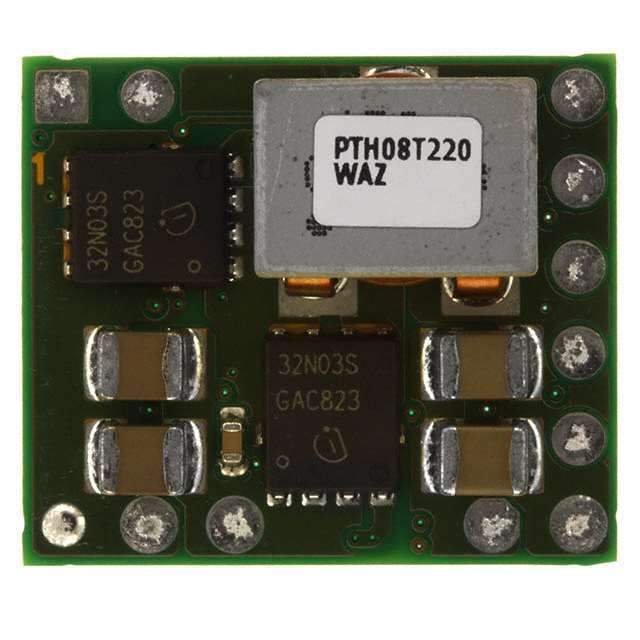

PTH08T220WAZT

Name: PTH08T220WAZT
Brand: Texas Instruments
SKU: 283844
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH08T220WAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 16A 14VIN ADJ 11-SMD
Datasheet	PTH08T220WAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Minimum Input Voltage	4.5V
Maximum Input Voltage	14V
Nominal Output Voltage 1	0.69 to 5.5 V
Current - Output (Max)	16A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C to 85°C
Efficiency	95%
Mounting	SMD (SMT)
Dimension	0.87" L x 0.75" W x 0.36" H (22.1mm x 19.1mm x 9.1mm)
Win Source Part Number	084987-PTH08T220WAZ
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08T220WAZT CAD Model

Alternative Products

Description

The PTH08T220WAZT is a high-performance, 50-A rated, non-isolated power module developed by Texas Instruments.

Auto-Track Sequencing Technology: Yes
Input Voltage Range: 4.5V to 14V
Adjustable Output Voltage: 0.69V to 5.5V
Efficiency: Up to 95% @ half load
Power Density: High
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Output Over-Current Protection: Yes
Short-Circuit Protection: Yes
Adjustable Slow-Start: Yes
Pre-Biased Output Start-Up: Yes
Package: Surface-mount
