The TC74HC574AP is an octal D-type flip-flop with three-state outputs manufactured by Toshiba Semiconductor and Storage. This device is commonly used as a temporary storage element in digital systems, such as memory interfaces, data buffers, and register files. Its high-speed operation and three-state outputs make it suitable for bus-oriented applications.

Applications

• Memory interfaces
• Data buffers
• Register files
• Address latches
• Microprocessor systems

Features

• Octal D-type flip-flop
• Three-state outputs
• High-speed operation
• Low power consumption
• Wide operating voltage range

Benefits

• Temporary data storage
• Isolation of data buses
• High-speed data transfer
• Energy-efficient operation
• Versatile application in digital systems

Additional Details

The TC74HC574AP is designed for high-speed, low-power operation. The three-state outputs allow the device to be connected directly to a data bus without interfering with other devices. The device features a common clock and output enable control, simplifying system design. The high-speed operation ensures that data can be transferred quickly and efficiently. The wide operating voltage range makes the device suitable for a variety of applications. The TC74HC574AP is a reliable and cost-effective solution for temporary data storage and bus isolation.

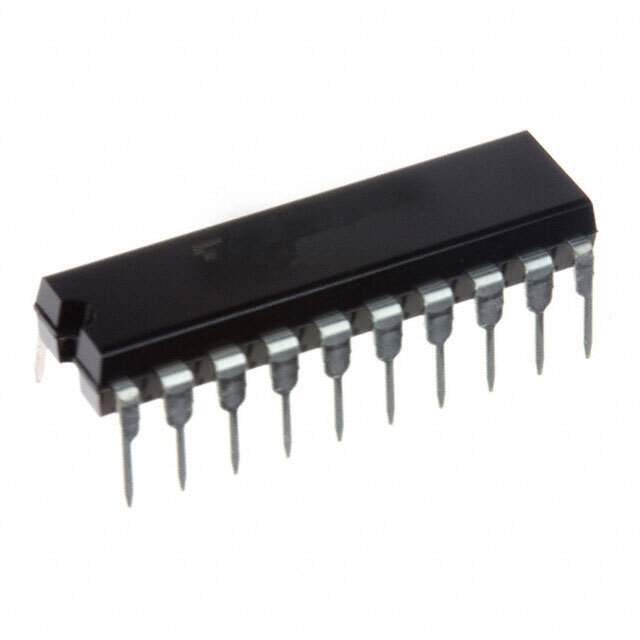

The device’s inputs include clamp diodes, which enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. The control inputs (Output Enable and Clock) are designed to minimize the effects of input switching, which can reduce noise. It also has a pinout that optimizes layout and reduces parasitic inductance. The TC74HC574AP is available in a DIP (Dual In-line Package), making it easy to prototype and implement in existing systems.
