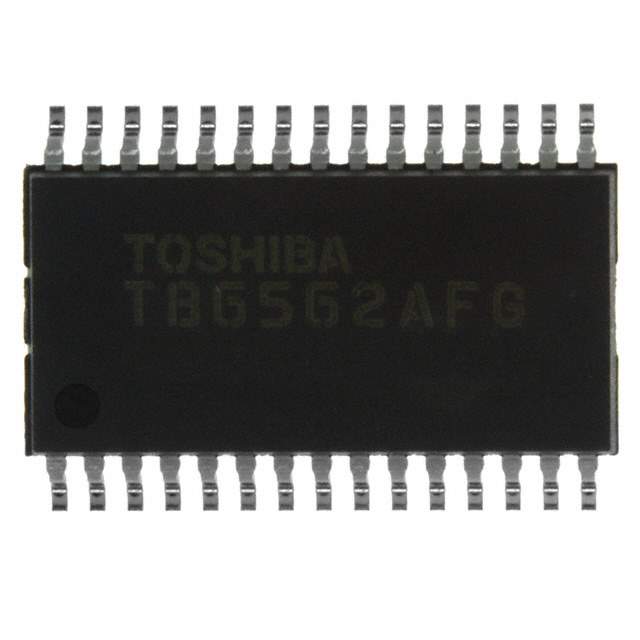

TB6562AFG Real Image
Same model may have multiple batches, images only for reference.

TB6562AFG

Part No TB6562AFG
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 30SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 10 V to 34 V
Voltage - Load 10 V to 34 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 30-SSOP
Win Source Part Number 355612-TB6562AFG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB6562AFG CAD Model

Description

The Toshiba Semiconductor and Storage is a top-quality electronic component that is designed to deliver optimal performance in a wide range of applications.

  • Win Source Part Number: 355612-TB6562AFG
  • Supply and Demand Status: limited.
  • Component Type: driver that is fully integrated, and it comes with a control and power stage.
  • Voltage Load Range: 10 V to 34 V
  • Motor Type: bipolar
  • Step Resolution: 1, 1/2, and 1/4, making it ideal for a wide range of applications.
