The TB6559FG is a PWM chopper-type stepping motor driver manufactured by Toshiba Semiconductor and Storage. It's designed to control two-phase bipolar stepping motors with a wide range of applications in robotics, automation, and precision positioning systems.

Applications

• Robotics: Controls the movement of robotic arms and joints.
• Office Automation Equipment: Used in printers, scanners, and copiers for precise paper and head movement.
• CNC Machines: Drives the motors for accurate positioning of tools.
• Surveillance Cameras: Controls the pan and tilt mechanisms for precise camera positioning.
• Medical Equipment: Drives motors in medical devices requiring precise movement control.

Features

• PWM Chopper Drive: Provides efficient and precise motor control.
• Bipolar Stepping Motor Control: Designed for two-phase bipolar stepping motors.
• Built-in Protection Circuits: Includes overcurrent, overvoltage, and thermal shutdown protection.
• Micro-stepping Capability: Supports micro-stepping for smoother and more accurate movement.
• Low On-Resistance: Minimizes power dissipation and improves efficiency.

Benefits

• Precise Motor Control: Enables accurate and smooth movement of stepping motors.
• High Efficiency: Minimizes power consumption and heat generation.
• Enhanced Reliability: Protection circuits safeguard against potential damage.
• Simplified Design: Integrated features reduce the need for external components.
• Versatile Application: Suitable for a wide range of stepping motor control applications.

The TB6559FG utilizes a PWM (Pulse Width Modulation) chopper drive system to precisely control the current flowing through the motor windings. This allows for smooth and accurate micro-stepping, resulting in reduced vibration and noise. The integrated protection circuits ensure the driver operates safely under various fault conditions.

Technical Specifications:

• Supply Voltage: 4.5V to 15V
• Output Current: Up to 2.5A per channel
• PWM Frequency: Adjustable, typically around 20 kHz
• Operating Temperature: -20°C to +85°C

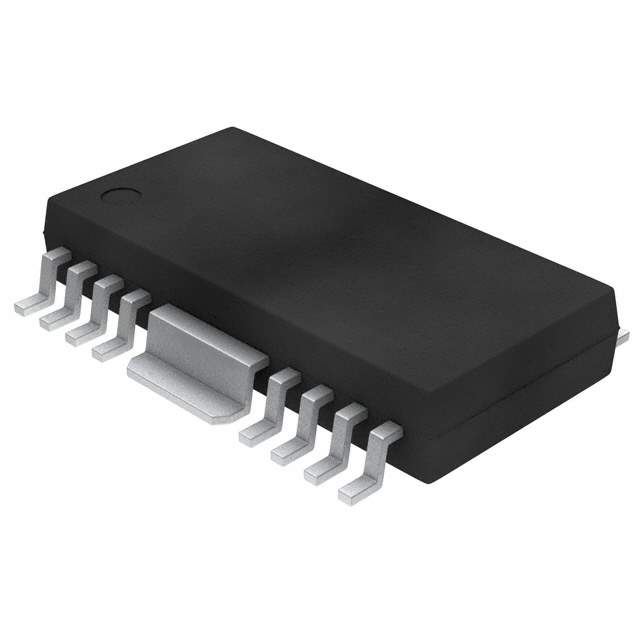

• Package Type: HTSSOP24-P-0.65
• Micro-stepping Modes: Full-step, half-step, quarter-step, and eighth-step

The TB6559FG is a robust and reliable stepping motor driver, offering precise control and comprehensive protection features. Its wide range of applications and ease of use make it a popular choice for various motor control systems.
