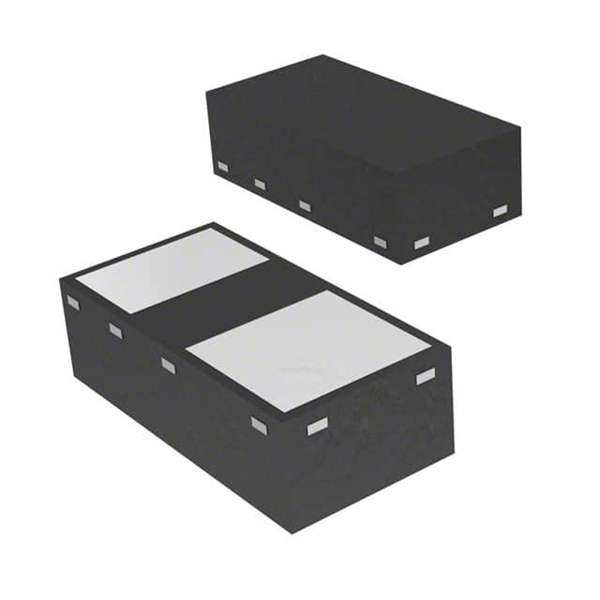

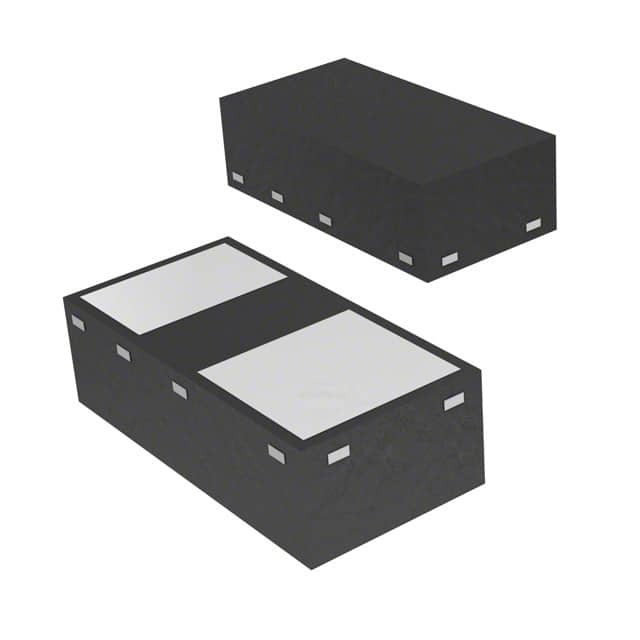

CCS15F40,L3F
Same model may have multiple batches, images only for reference.

CCS15F40,L3F

Part No CCS15F40,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1.5A CST2C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Diode Schottky 40 V 1.5A Surface Mount CST2C
Manufacturer Toshiba Semiconductor and Storage
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 2-SMD, No Lead
Case / Package CST2C
Family Name CCS15F40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number CCS15F40L3FCT, CCS15F40,L3F(B, CCS15F40L3FTR, CCS15F40,L3F(T, CCS15F40L3FDKR
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866048-CCS15F40,L3F
Ultra Librarian 3D Model Ultra Librarian CCS15F40,L3F CAD Model

Description

The Toshiba Semiconductor and Storage diode Schottky is a fast recovery component with a recovery time of less than 500ns. Toshiba Semiconductor and Storage manufactures it.

  • Recovery time: less than 500ns
  • Voltage rating: 40V
  • Current rating: 1.5A
  • Package: 2-SMD, no lead
  • Package: reel package with 10000 pieces
  • Supply and demand status: limited
  • Estimated production lead time: 11 weeks
  • HTSUS code: 8541.10.0080
