Products specifications

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Texas Instruments
Series ULx200xA
Package Tube
Switch Type Relay, Solenoid Driver
Number of Outputs 7
Output Configuration Low Side
Output Type NPN
Interface Parallel
Voltage - Load 50V (Max)
Supply Voltage - Operating Not Required
Current - Output (Max) 500mA
Input Type Inverting
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Supplier Device Package 16-TSSOP
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Base Product Number ULN2003
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names ULN2003AIPWG4-ND,296-27171-5,ULN2003AIPWE4-ND,ULN2003AIPW-ND
Standard Package 90
Win Source Part Number 970460-ULN2003AIPW
Ultra Librarian 3D Model Ultra Librarian ULN2003AIPW CAD Model

Description

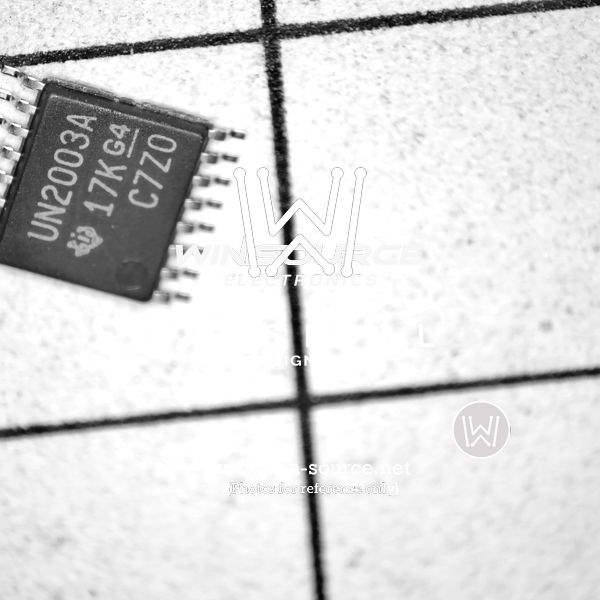

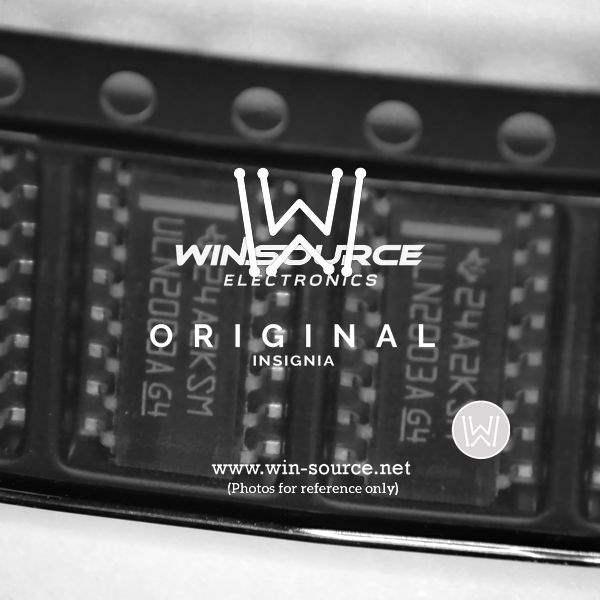

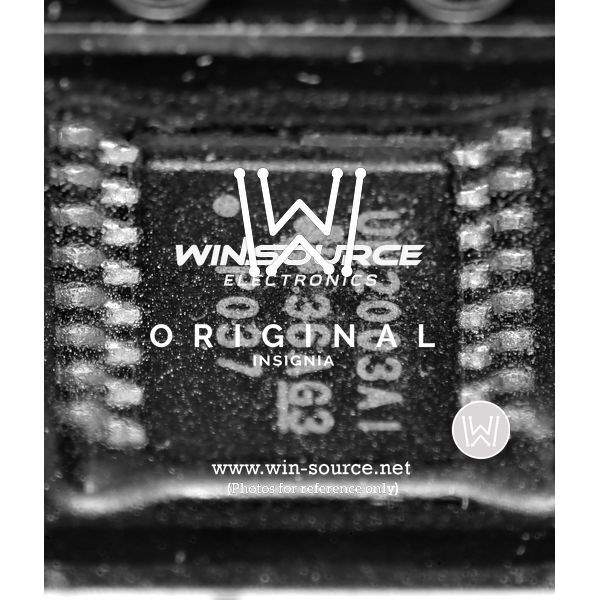

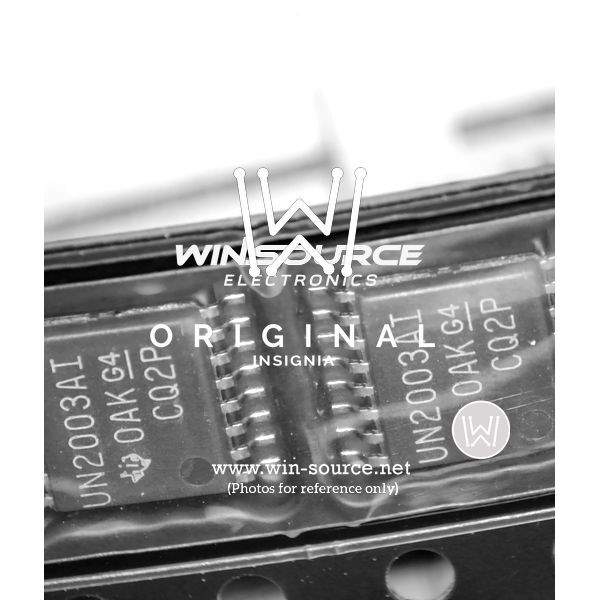

ULN2003AIPW High-Voltage, High-Current Darlington Transistor Array

The ULN2003AIPW is a versatile and robust integrated circuit designed by Texas Instruments, renowned for its high-voltage and high-current handling capabilities. This Darlington transistor array is composed of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA, making the ULN2003AIPW suitable for interfacing with a wide range of high-current and high-voltage loads.

Encased in a 16-pin TSSOP (Thin Shrink Small Outline Package), the ULN2003AIPW is optimized for efficient PCB space usage and is ideal for applications requiring compact size without compromising performance. This integrated circuit can directly drive lamps, relays, solenoids, and other high-current or high-voltage loads from a variety of digital logic circuits, such as TTL, CMOS, PMOS, and NMOS. Furthermore, the ULN2003AIPW is compatible with 5V microcontroller outputs, including popular platforms like Arduino and Raspberry Pi, making it a favorite among hobbyists and professionals alike.

The device features a wide operating voltage range from 5V to 50V, which allows it to be used in diverse applications. Additionally, its built-in clamp diodes are essential for safe driving of inductive loads by suppressing voltage spikes that occur when the inductive load is switched off, thereby protecting the circuitry from potential damage.

The ULN2003AIPW is characterized by its ease of use, requiring minimal external components to operate effectively. It is also known for its reliability and durability, which is backed by Texas Instruments' commitment to quality. This makes it an excellent choice for applications in automation, control systems, and any circuitry where interfacing between low-level logic and high-power actuators is necessary.

With its combination of high-voltage and high-current capabilities, compact form factor, and ease of integration, the ULN2003AIPW from Texas Instruments stands out as a practical solution for driving a broad array of loads in electronic systems.
