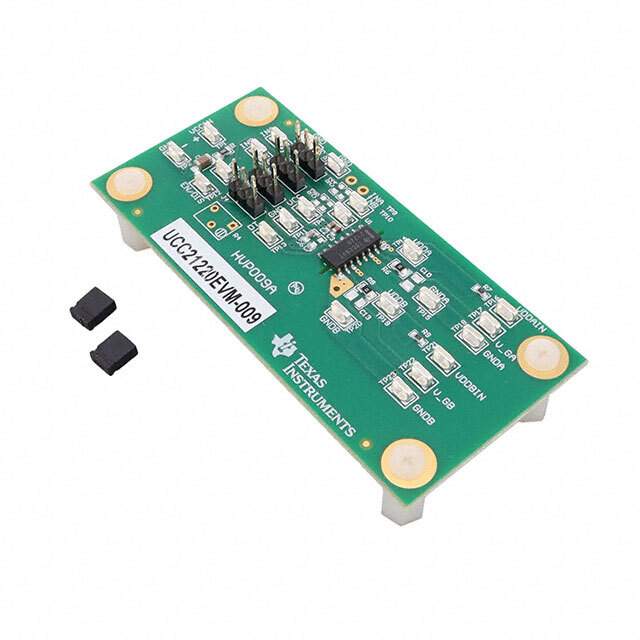

The UCC21220EVM-009 from Texas Instruments is a robust evaluation module designed to showcase the features and capabilities of the UCC21220, a dual-channel isolated gate driver with 4-A source and 6-A sink peak current capability. This evaluation module is specifically tailored for testing the UCC21220 in a variety of applications, including but not limited to, switch-mode power supplies, motor drives, and power converters/inverters.

Key Features

• Isolated Dual-Channel Gate Driver: The UCC21220EVM-009 features two independent gate drivers, allowing for the control of two different gate-driven devices, such as IGBTs or MOSFETs, simultaneously.
• High Drive Strength: With the ability to source up to 4 A and sink up to 6 A, the UCC21220 provides robust drive strength, ensuring rapid charging and discharging of the gate capacitance for fast switching performance.
• Wide Supply Voltage Range: The module operates over a wide supply voltage range, accommodating various application needs.
• Enhanced Isolation: The UCC21220EVM-009 offers reinforced isolation, which is critical for applications that require electrical separation between the input and output to ensure safety and signal integrity.
• Flexible Configuration: The evaluation module can be configured to work in various topologies, making it a versatile tool for testing and development.

Applications

• Industrial Drives
• Renewable Energy Systems
• Power Supplies
• Power Converters/Inverters

The UCC21220EVM-009 is an essential tool for engineers looking to evaluate the performance of the UCC21220 gate driver in their own designs. With its robust feature set and flexible configuration options, this evaluation module is an excellent choice for developing high-performance power management solutions.

Package Contents

The UCC21220EVM-009 evaluation module package includes the fully assembled and tested evaluation board, as well as comprehensive documentation that covers the board's layout, schematic, bill of materials, and test results to assist developers in getting up and running quickly.
