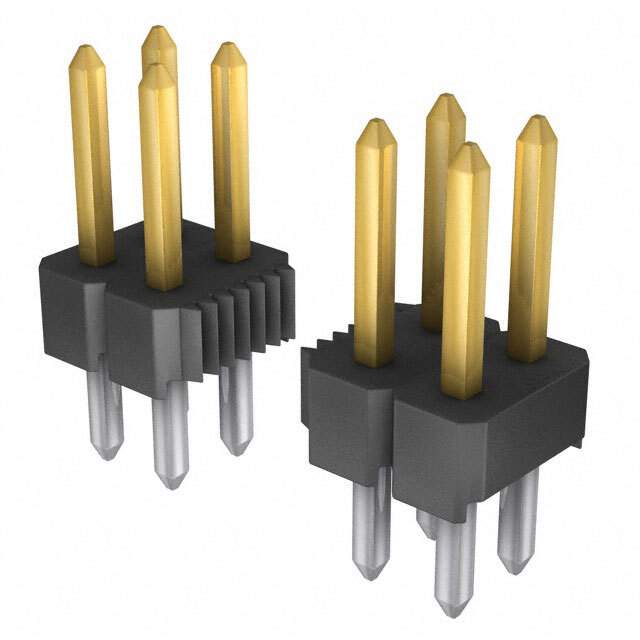

Same model may have multiple batches, images only for reference.

961264-6404-AR

Name: 961264-6404-AR
Brand: 3M
SKU: 1338932
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	961264-6404-AR
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 64POS 2.54MM / Connector Header Through Hole 64 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	961
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	64
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.445" (11.30mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-25°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	961264
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338932-961264-6404-AR
Ultra Librarian 3D Model	Ultra Librarian 961264-6404-AR CAD Model

Description

The 1338932-961264-6404-AR is a 64-position header connector from the 961 series of rectangular connectors.

Mfr: 3M
Series: 961
Connector Type: Header
Positions: 64
Contact Type: Male Pins
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Loaded Positions: All
Contact Finish: Gold with flash thickness
Insulation Material: Thermoplastic
Insulation Color: Black
Standard Package Quantity: 1
Overall Contact Length: 0.445" (11.30mm)
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
