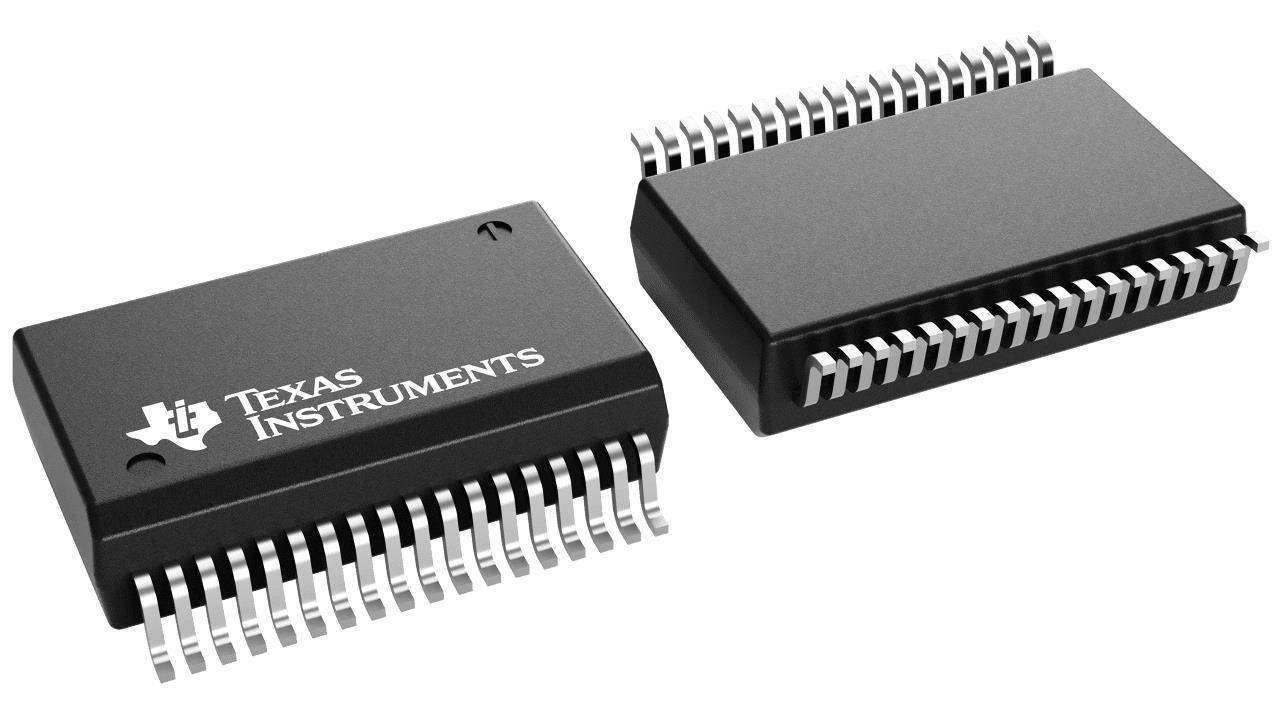

UCC15240QDWNRQ1

Name: UCC15240QDWNRQ1
Brand: Texas Instruments
SKU: WS1307360
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UCC15240QDWNRQ1
Manufacturer	Texas Instruments
Catalog	Board Mount AC DC Converters
Description	AUTOMOTIVE, 2.5-W, 24-VIN, 25-VO
Datasheet	UCC15240QDWNRQ1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307360-UCC15240QDWNRQ1
Category	Power Supplies - Board Mount DC DC Converters
Mfr	Texas Instruments
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21V
Voltage - Input (Max)	27V
Voltage - Output 1	15 ~ 25V
Current - Output (Max)	100mA
Ultra Librarian 3D Model	Ultra Librarian UCC15240QDWNRQ1 CAD Model

Alternative Products

Description

Fully integrated high-density isolated DC/DC module with isolation transformer
Isolated DC/DC for driving: IGBTs, SiC, and Si MOSFETs
Input voltage range: 21 V to 27 V with 32-V absolute maximum
2.5-W output power at TA ≤ 85°C and 2.0-W output power at TA ≤ 105°C
Adjustable single or dual output voltages (using resistors) with < ±1.3 % regulation accuracy over full operating range
Low electromagnetic emission with spread spectrum modulation and integrated transformer design
Enable, Power Good, UVLO, OVLO, soft-start, short-circuit, power-limit, under-voltage, overvoltage, and over-temperature protection
CMTI > 150 kV/µs
AEC-Q100 qualified for automotive applications
Temperature grade 1: –40°C ≤ TJ ≤ 150°C
Temperature grade 1: –40 °C ≤ TA ≤ 125°C
Functional Safety-Capable – Documentation available to aid functional safety system design • Planned safety-related certifications:
5657-VPK basic isolation per DIN EN IEC 60747-17 (VDE 0884-17) 3000-VRMS isolation for 1 minute per UL1577
Basic insulation per CQC GB4943.1
36-pin, wide SSOP package
