Product Overview: UC3710T from Texas Instruments

The UC3710T is a robust, high-speed MOSFET driver designed by Texas Instruments to cater to a wide range of power management applications. This driver is specifically engineered to efficiently switch power MOSFETs and IGBTs by providing high peak current pulses that minimize switching times for both turn-on and turn-off events.

Key Features

• High Current Driving Capability: The UC3710T can deliver peak output currents of up to 9A, ensuring that connected MOSFETs or IGBTs are driven hard enough to switch rapidly, reducing power losses during transitions.
• Wide Operating Voltage Range: This driver operates over a supply voltage range of 10V to 18V, making it versatile for various circuit configurations and ensuring compatibility with a broad spectrum of power stages.
• Fast Propagation Delays: With propagation delays typically under 25ns, the UC3710T contributes to the overall efficiency of the power conversion process by enabling quick response times.
• Protection Features: It includes under-voltage lockout (UVLO) protection to ensure that the driver operates only when the supply voltage is within a safe range, thereby protecting the power stage components from potential damage.

Applications

The UC3710T is an ideal choice for a variety of demanding applications, including:

• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Motor Control Circuits
• Class-D Audio Amplifiers
• Power Inverters

Product Specifications

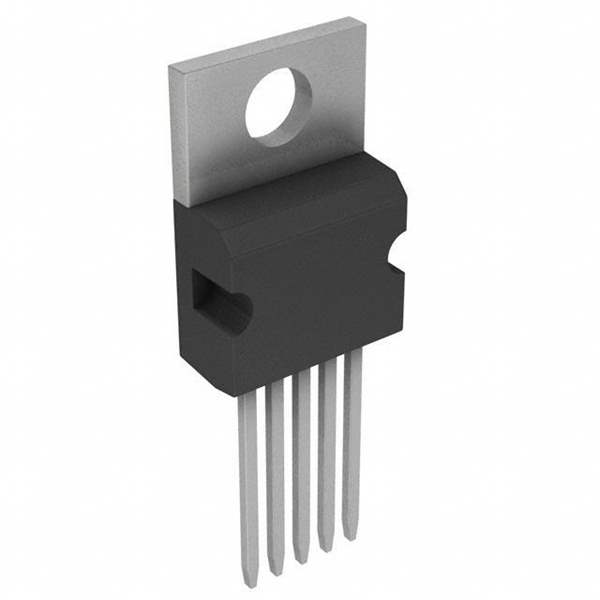

Encased in a TO-220 package, the UC3710T features an extended temperature operating range from -40°C to +125°C, which enables it to perform reliably in harsh environments. Its robust design ensures that it can handle the rigors of industrial and automotive applications where reliability is paramount.

Whether you are designing a new power system or upgrading an existing one, the UC3710T from Texas Instruments offers the performance and reliability needed to build efficient, high-performance power management solutions.
