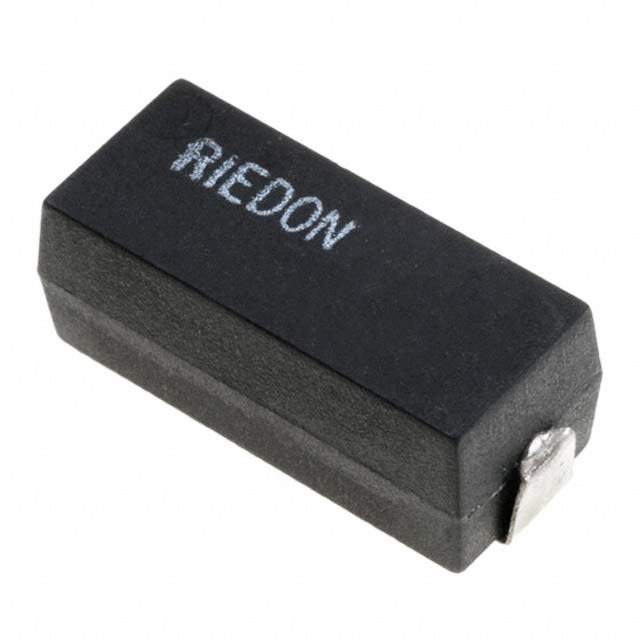

S2-0R1J3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 100 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 2615 J-Lead
Dimension 0.260" L x 0.154" W (6.60mm x 3.90mm)
Height - Seated (Max) 0.142" (3.60mm)
Number of Terminations 2
Other Names S-2 0.100 OHM 5%,S-2-0.100JTR,S-2-0.100JTR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237195-S2-0R1J3
Ultra Librarian 3D Model Ultra Librarian S2-0R1J3 CAD Model

Description

The Riedon S-2 0.100 OHM 5% is a chip resistor that is surface-mounted and designed for current sensing.

  • Features: Pulse-withstanding, flame-proof, and moisture-resistant
  • Type: Wirewound resistor
  • Power Rating: 1W
  • Resistance: 100 mOhms
  • Tolerance: ±5%
  • Temperature Range: -55°C to 275°C
  • Dimension: 0.260" L x 0.154" W (6.60mm x 3.90mm)
  • Manufacturer: Riedon
