Product Overview: Texas Instruments TXS0104EYZTR

The Texas Instruments TXS0104EYZTR is a versatile, bidirectional voltage-level translator designed for multi-voltage digital system applications. It is a part of the TXS0104E family, which is engineered to provide seamless communication between devices operating at different voltage levels. This is particularly useful in scenarios where a microcontroller needs to interface with components such as sensors, EEPROMs, or other microcontrollers that operate at a non-compatible voltage level.

This level translator features four bidirectional channels, allowing for simultaneous data transfer in both directions. Each channel is capable of auto-direction sensing, which simplifies the design process as there is no need for a direction control signal. The TXS0104EYZTR supports both push-pull and open-drain configurations, enhancing its flexibility and making it suitable for a wide range of applications.

One of the key benefits of the TXS0104EYZTR is its support for multiple voltage levels, ranging from 1.65V to 3.6V on the A side (VCCA) and 2.3V to 5.5V on the B side (VCCB). This wide range allows for interfacing between low-voltage and higher-voltage logic circuits without the need for additional components or complex circuitry.

The device is also equipped with built-in pull-up resistors, which are connected to the VCCB side of the translator. These resistors ensure that the lines are pulled to a high state when no active drivers are present on the bus, preventing floating lines and potential data corruption.

For enhanced performance, the TXS0104EYZTR incorporates Texas Instruments' proprietary edge-rate acceleration circuitry. This feature helps to improve the data transfer rates by increasing the edge rates on the data lines. It also includes a power-off protection circuit that ensures no excessive current is drawn from or supplied to the device when it is powered down.

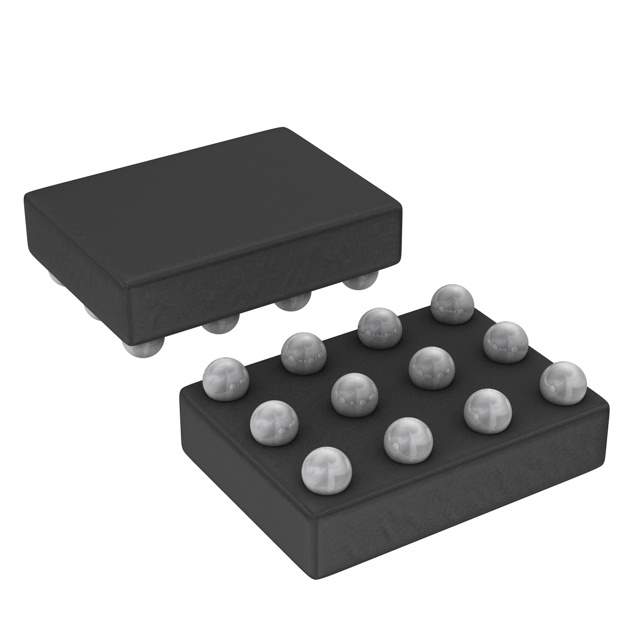

Available in a compact 14-pin YZP package, the TXS0104EYZTR is designed for space-constrained applications. It is suitable for use in a variety of products, including mobile phones, media players, GPS devices, and other portable electronics where interfacing between different voltage domains is required.

With its robust feature set and Texas Instruments' reputation for quality, the TXS0104EYZTR is an excellent choice for designers looking to ensure reliable communication between digital components operating at varying voltage levels.
