The TUSB1105RTZR is a highly integrated USB 2.0 transceiver chip from the reputable semiconductor manufacturer, Texas Instruments. This versatile device is designed to manage USB data transmission and reception, making it an essential component for a wide range of applications that require USB connectivity.

Key Features

• USB 2.0 Compliance: The TUSB1105RTZR adheres to the USB 2.0 specification, ensuring compatibility with a broad array of USB devices and guaranteeing high-speed data transfer rates of up to 480 Mbps.
• Integrated PHY: The device features a built-in Physical Layer (PHY) transceiver, which provides the electrical and signal timing interface between the digital logic and the USB cable.
• Low Power Consumption: Designed with power efficiency in mind, the TUSB1105RTZR operates with minimal power consumption, making it suitable for battery-powered applications.
• OTG Capabilities: It supports USB On-The-Go (OTG), a feature that allows mobile devices to act as USB hosts, enabling them to connect to other USB devices without the need for a computer.
• Enhanced Signal Quality: The transceiver includes built-in features that enhance signal quality and robustness, such as integrated termination resistors and electrostatic discharge (ESD) protection circuits.

Applications

The TUSB1105RTZR is suitable for a variety of applications, including:

• Smartphones and tablets
• Portable media players
• Digital cameras and camcorders
• Printers and multifunction peripherals
• Networking and communication devices

Package and Availability

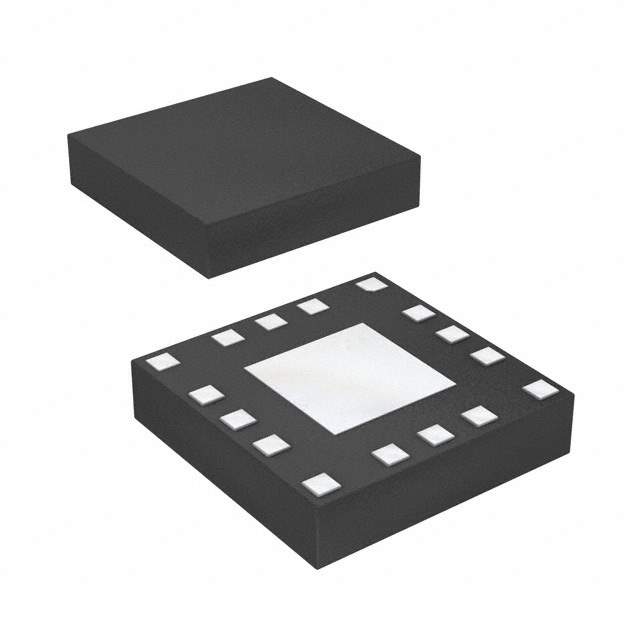

The TUSB1105RTZR is offered in a compact QFN (Quad Flat No-Lead) package, making it ideal for space-constrained designs. It is available for order through Texas Instruments and authorized distributors, ensuring reliable sourcing for your manufacturing needs.

Conclusion

With its high-speed performance, low power consumption, and USB OTG support, the TUSB1105RTZR from Texas Instruments is a top choice for designers looking to integrate USB functionality into their products. Its robust feature set and compact design make it a versatile solution for a multitude of USB-enabled devices.
