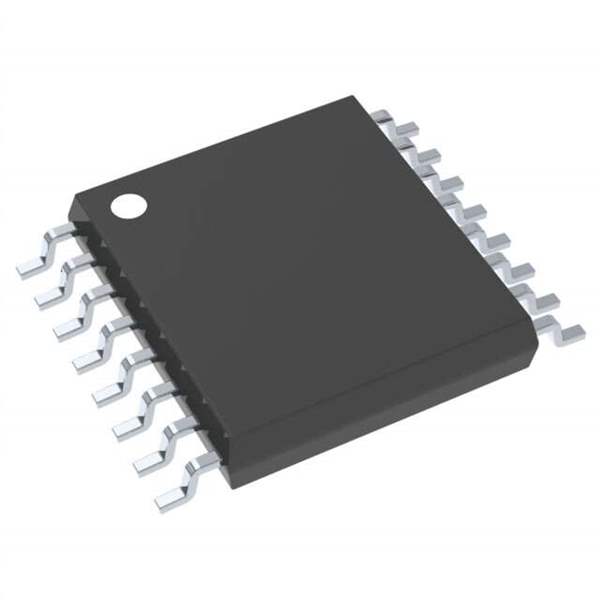

Introducing the TSC2046EIPWG4 Touch Screen Controller

The TSC2046EIPWG4 is a versatile and highly integrated touch screen controller designed by Texas Instruments, a leader in semiconductor innovation. This advanced controller is part of the TSC204x family and is specifically tailored for use with resistive touch screen panels, offering a perfect solution for embedded systems requiring touch input functionality.

Key Features

• Precision Technology: The TSC2046EIPWG4 operates with a 12-bit resolution and a 125 kHz sampling rate, ensuring precise and responsive touch detection.
• Multiple Interface Support: This controller supports SPI, QSPI, and Microwire interfaces, providing flexibility for various system design requirements.
• Advanced Power Management: It features an on-chip 2.5 V reference and a low-power shutdown mode, making it ideal for battery-operated devices.
• Enhanced Functionality: The controller includes a temperature sensor and touch pressure measurement capabilities, adding to the range of possible applications.

Applications

The TSC2046EIPWG4 is well-suited for a wide array of applications, including but not limited to:

• Personal Digital Assistants (PDAs)
• Portable Instruments
• Point-of-Sale (POS) Terminals
• Smartphones and Tablets

Product Specifications

This high-performance controller is offered in a PWG4 package, which is characterized by its compact size and ease of integration into a variety of designs. It operates over the industrial temperature range (-40°C to +85°C), ensuring reliable performance under challenging conditions.

Quality and Support

As with all Texas Instruments products, the TSC2046EIPWG4 is manufactured to meet high-quality standards, and customers can expect robust support including technical documentation, application notes, and design resources to streamline the development process.

Whether you're designing a new touch-enabled device or upgrading an existing system, the TSC2046EIPWG4 offers a reliable and cost-effective solution that doesn't compromise on performance.
