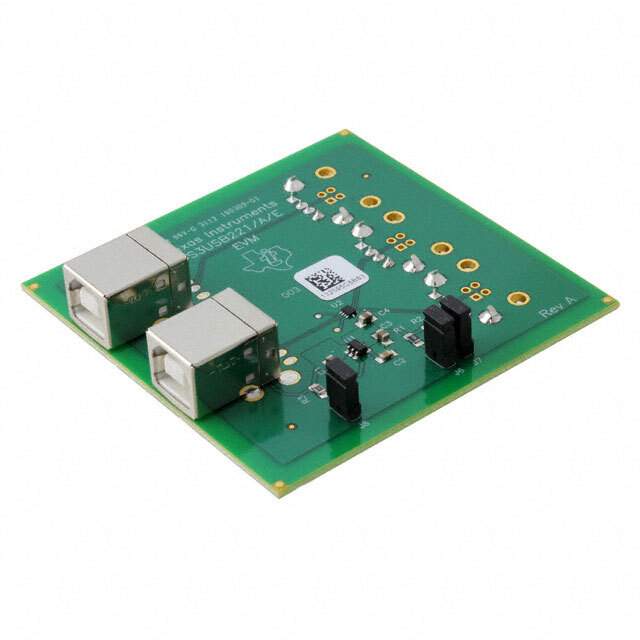

The TS3USB221AEVM is an evaluation module designed to demonstrate the capabilities of the TS3USB221A, a high-speed USB 2.0 (480-Mbps) 1:2 multiplexer/demultiplexer switch from Texas Instruments. This versatile switch is engineered to provide a seamless transition between two high-speed signals, making it an ideal solution for applications that require switching between USB sources or destinations.

The TS3USB221AEVM showcases the switch's low on-state resistance and low capacitance, which ensures minimal signal distortion and supports the high-speed data rates required by USB 2.0. The module is designed to be easy to use and provides access to all the signals necessary to evaluate the full functionality of the TS3USB221A.

Featuring a small form factor, the EVM can be used in conjunction with a motherboard or as a standalone device. It is particularly useful for testing the switch's performance in various scenarios, including signal integrity, isolation, crosstalk, and bandwidth tests. This makes the TS3USB221AEVM an invaluable tool for designers and engineers who are developing USB-enabled devices such as laptops, desktops, docking stations, and many other peripherals that require reliable high-speed data transfer capabilities.

The EVM includes configuration options that allow users to select between manual or automatic switching modes, providing flexibility for different use cases. Additionally, the on-board jumpers enable easy modification of the switch control inputs, making it simple to integrate the EVM into a wide range of test environments.

In summary, the TS3USB221AEVM from Texas Instruments is a comprehensive evaluation platform that facilitates the testing and development of USB 2.0 switching applications. Its robust design and flexible configuration options make it an essential tool for any professional working with high-speed USB data communication systems.
