Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 5/3
Duplex Full
Receiver Hysteresis 500mV
Data Rate 1Mbps
Operating Supply Voltage 3 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 28-SSOP (0.209", 5.30mm Width)
Manufacturer Package 28-SSOP

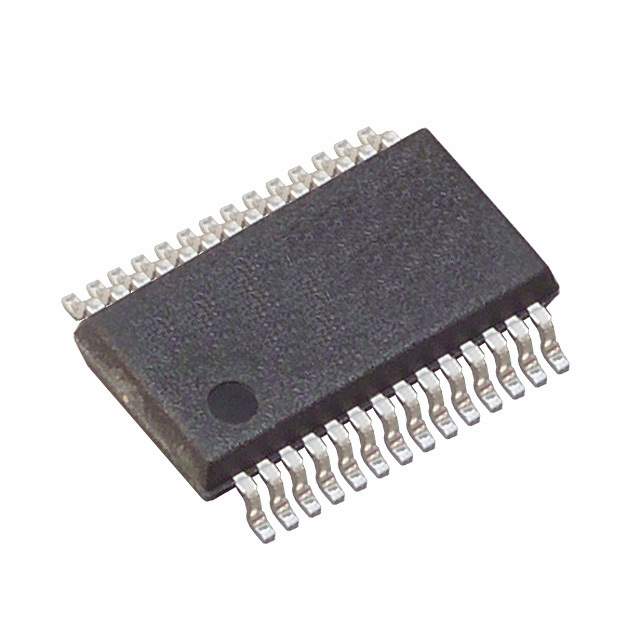

Win Source Part Number 1274031-TRS3237EIDBR
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name TRS3237E
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TRS3237EIDBR CAD Model

Description

The TRS3237EIDBR is a high-performance interface IC from Texas Instruments designed for RS-232 communication. This robust device is engineered to operate with a 3V to 5.5V supply, making it versatile for a wide range of applications. The TRS3237EIDBR is particularly well-suited for portable or compact devices due to its low-power consumption and small form factor.

Key Features

  • Electrical Interface: Compliant with the RS-232 protocol, the TRS3237EIDBR ensures reliable data transmission even at high baud rates.
  • Supply Voltage Range: With a flexible supply voltage range of 3V to 5.5V, it accommodates various system power schemes.
  • Low-Power Operation: This device is optimized for low-power consumption, which is critical for battery-powered and energy-efficient designs.
  • Integrated Charge Pump: The built-in charge pump circuitry generates the necessary RS-232 voltage levels from a single power supply, simplifying the design and reducing component count.
  • Data Rate: It supports data rates up to 250 kbps, providing a balance of speed and reliability for serial communication.
  • ESD Protection: The TRS3237EIDBR offers enhanced Electrostatic Discharge (ESD) protection, safeguarding the device against static damage during handling and operation.

Applications

The versatility of the TRS3237EIDBR makes it an excellent choice for a diverse array of applications, including:

  • Portable and handheld devices
  • Consumer electronics
  • Data acquisition systems
  • Industrial control and automation
  • Point-of-sale (POS) terminals

Package and Quality

The TRS3237EIDBR is offered in a compact SSOP-28 (Shrink Small Outline Package) that is conducive to space-constrained designs. Texas Instruments' commitment to quality ensures that each device meets high standards for performance and reliability. Whether integrating into new designs or upgrading existing systems, the TRS3237EIDBR provides a dependable solution for RS-232 communications.
