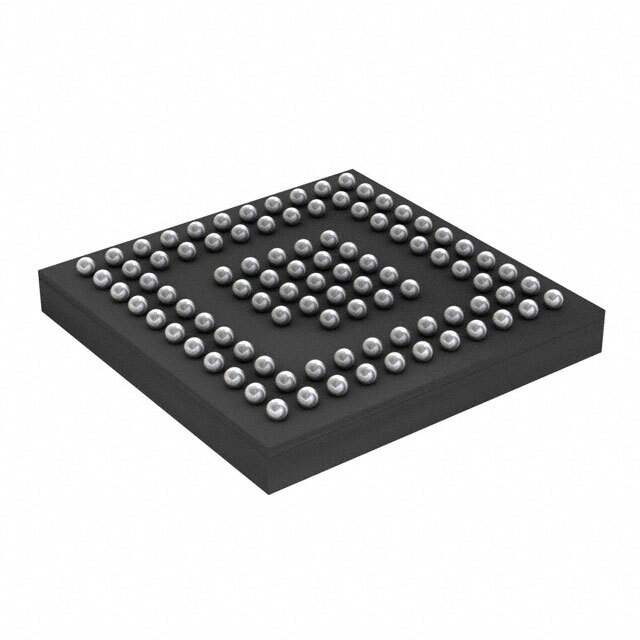

Product Overview: TPS65983BAZQZR by Texas Instruments

The TPS65983BAZQZR is a state-of-the-art integrated circuit (IC) from Texas Instruments, designed to facilitate USB Power Delivery (PD) and provide a comprehensive solution for USB Type-C and USB PD systems. This highly integrated device is ideal for applications such as laptops, tablets, docking stations, monitors, and many other consumer electronics that require advanced power management and USB connectivity.

Key Features

• USB Power Delivery: The TPS65983BAZQZR supports the full USB PD 3.0 specification, enabling higher power capabilities and efficient power management across USB Type-C connections.
• Programmable Power Supply: With its integrated power paths, this IC can be programmed to provide different power levels, ensuring compatibility with a wide range of devices and optimizing power delivery for specific applications.
• Alternate Mode Support: It supports multiple alternate modes, enabling additional functionalities such as DisplayPort or Thunderbolt over a USB Type-C connection.
• Integrated Microcontroller: The built-in microcontroller allows for customizable firmware, providing flexibility for manufacturers to adapt the IC to their specific needs.

Advanced Protection and Safety Features

The TPS65983BAZQZR is equipped with advanced protection features to ensure the safety and longevity of the devices it powers. These include over-voltage, over-current, and over-temperature protection mechanisms that safeguard against potential damage from electrical anomalies.

Compact and Energy Efficient

Designed with energy efficiency in mind, the TPS65983BAZQZR minimizes power consumption in both active and standby modes, contributing to the extended battery life of portable devices. Its compact QFN package allows for a smaller footprint on the PCB, making it well-suited for space-constrained applications.

Applications

• Portable Computing Devices
• Docking Stations
• Monitors and Display Interfaces
• Power Adapters and Chargers

The TPS65983BAZQZR from Texas Instruments is a versatile and powerful solution for modern USB Type-C and Power Delivery applications, offering both the performance and reliability expected from a leading semiconductor manufacturer.
