Product Overview: TPS65982BBZBHR from Texas Instruments

The TPS65982BBZBHR is a versatile and highly integrated power management device designed by Texas Instruments (TI) to cater to the needs of modern USB Type-C and USB Power Delivery (PD) applications. This advanced chip is engineered to simplify the implementation of USB Type-C PD designs by combining many functions into a single package, making it an ideal solution for a wide range of consumer, automotive, and industrial products.

Key Features

• USB Type-C and PD Controller: The TPS65982BBZBHR is equipped with a fully integrated USB Type-C and PD controller, supporting the USB PD 3.0 standard for efficient power negotiation up to 100W.
• Programmable Power Supply (PPS): With PPS support, the device enables fine-grained control over the power delivery process, allowing for adaptive voltage and current supply based on the connected device's requirements.
• Configurable I/O: The product features multiple configurable I/O pins that can be used for different functions such as USB data lines, control signals, or as general-purpose I/O.
• Bidirectional Power Switch: The integrated bidirectional power switch facilitates the flow of power in both directions, enabling the device to act as either a power source or sink.

Applications

The TPS65982BBZBHR is suitable for a diverse set of applications, including:

• Notebook and desktop computers
• Tablets and mobile devices
• Docking stations
• Monitors and displays with USB Type-C connectivity
• Portable accessories and peripherals

Technical Specifications

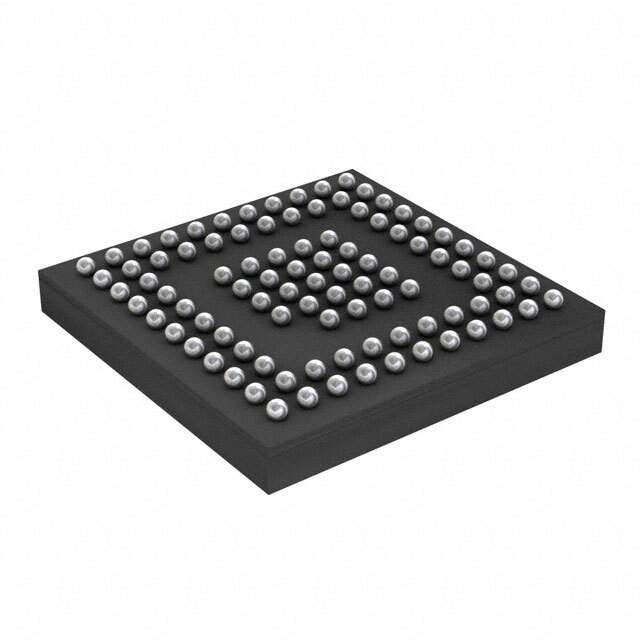

The device comes in a compact 98-pin RHL package and operates within a broad temperature range, making it robust for various environments. It supports multiple voltage rails and offers advanced features such as dead battery provision, I2C support for configuration and control, and integrated discharge resistors on VBUS and VCONN lines.

Conclusion

With its comprehensive feature set and integration, the TPS65982BBZBHR from Texas Instruments simplifies the design and enhances the functionality of USB Type-C and PD systems. Its adaptability and efficiency make it a go-to solution for designers looking to create products compatible with the latest USB standards.
